Water Lateral system

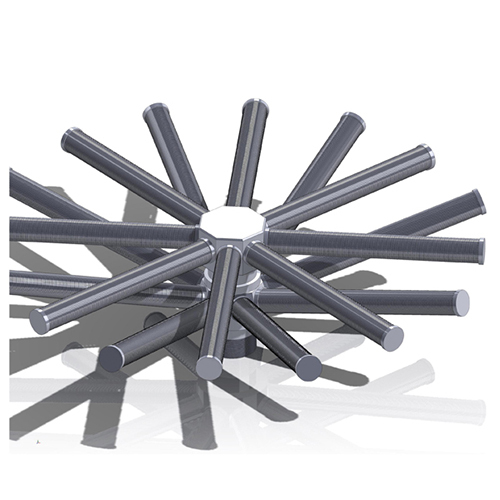

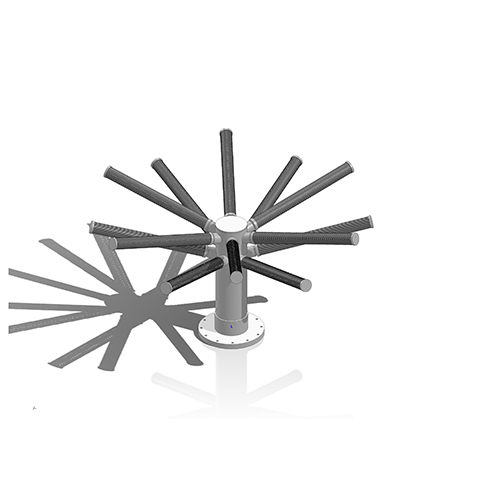

Wedge Wire Screen Collector with Hub Spokes

The wedge wire screen collector with hub spokes is constructed of a series of wedge wire screens arranged in a spiral pattern around the hub, which is the center of the collector.
  • Structure:
    Wedge Wire Screen
Description
Description
The wedge wire screen collector with hub spokes is constructed of a series of wedge wire screens arranged in a spiral pattern around the hub, which is the center of the collector.

The wedge wire screens are held in place by spokes that run from the hub to the outside of the collector.

The wedge wire openings allow for maximum flow, while the hub and spoke design ensures that the screens are evenly spaced and evenly distributed.

Wedge wire screen collectors with hub spokes can be customized into different specifications and sizes according to different purposes and installed in the tank for use. It can be applied to solid-liquid separation and recovery.

The wedge wire screen collector with hub spokes is constructed of a series of wedge wire screens arranged in a spiral pattern around the hub, which is the center of the collector.

Applications of wedge wire screen collector with hub spokes

Wedge wire screen collectors with hub spokes are the best choice for water treatment and other industrial applications. It is a commonly used water treatment equipment and water device. Widely used in water treatment equipment, petroleum, chemical, pharmaceutical, food, sewage treatment, water plants, and other industries.

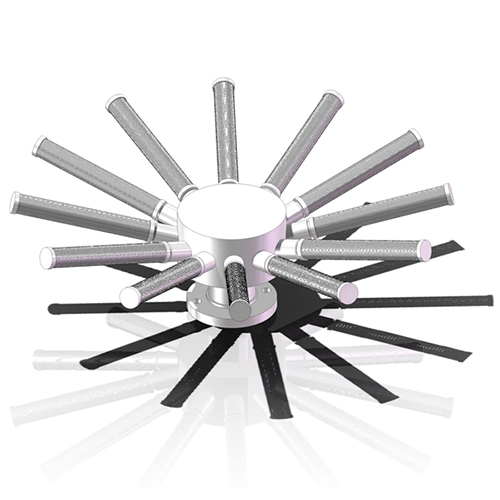

Wedge Wire Screen Collector with Hub Spokes

Features of wedge wire screen collector with hub spokes

1. The slotted wedge wire creates a large surface area, enabling it to capture more particles than other types of filtration devices.
2. Stainless steel material is corrosion-resistant and acid- and alkali-resistant, making it suitable for parallel flow regeneration of ion exchangers into acid and alkali devices.
3. Uniform gaps and sieve slots, large filtration area, high filtration precision, and excellent self-cleaning ability.

Contact us for a custom wedge wire screen collectors filtration solution!
