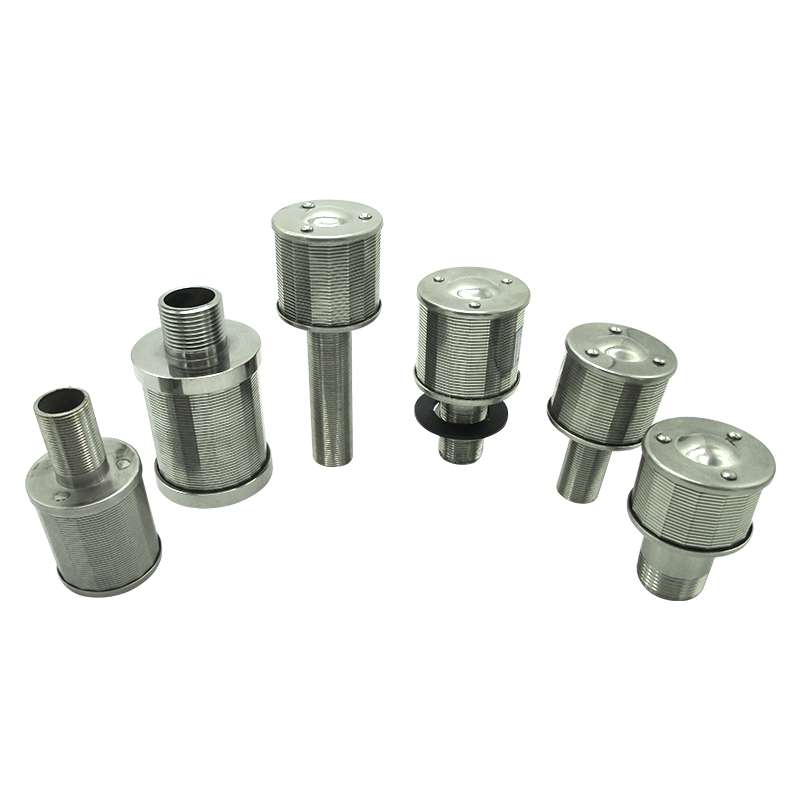

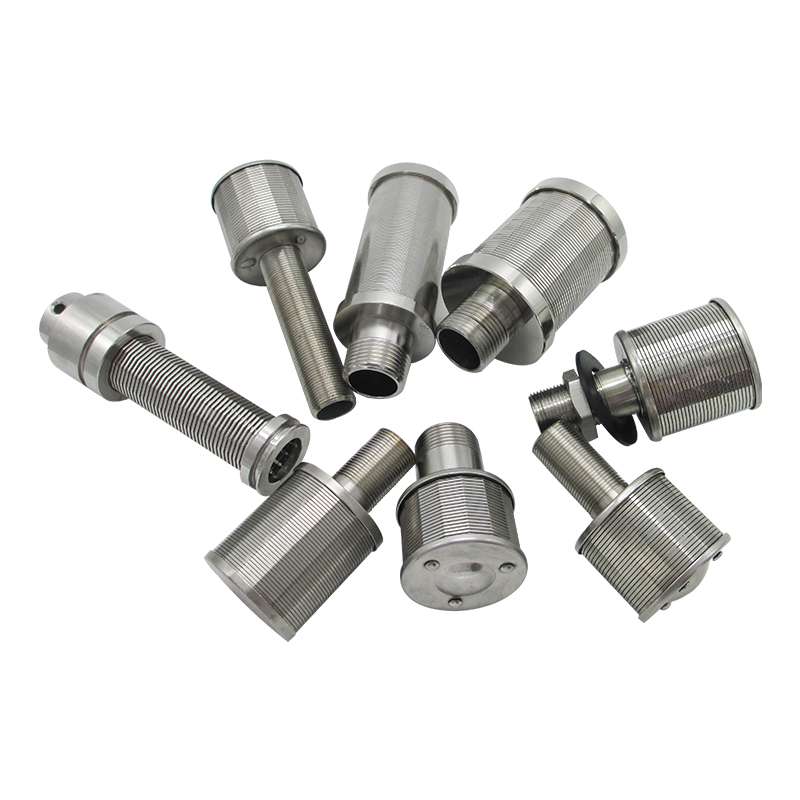

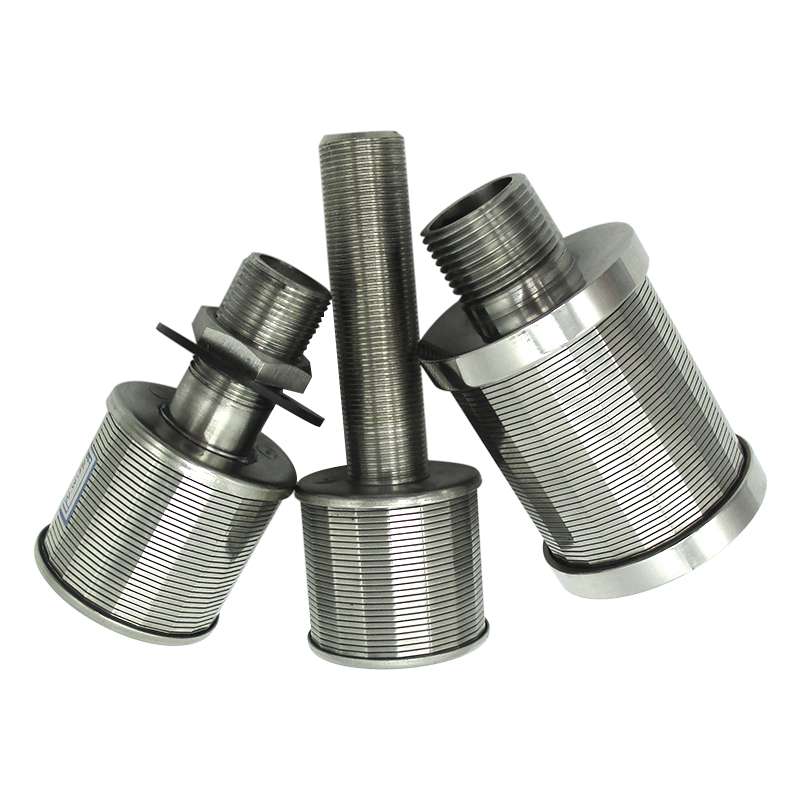

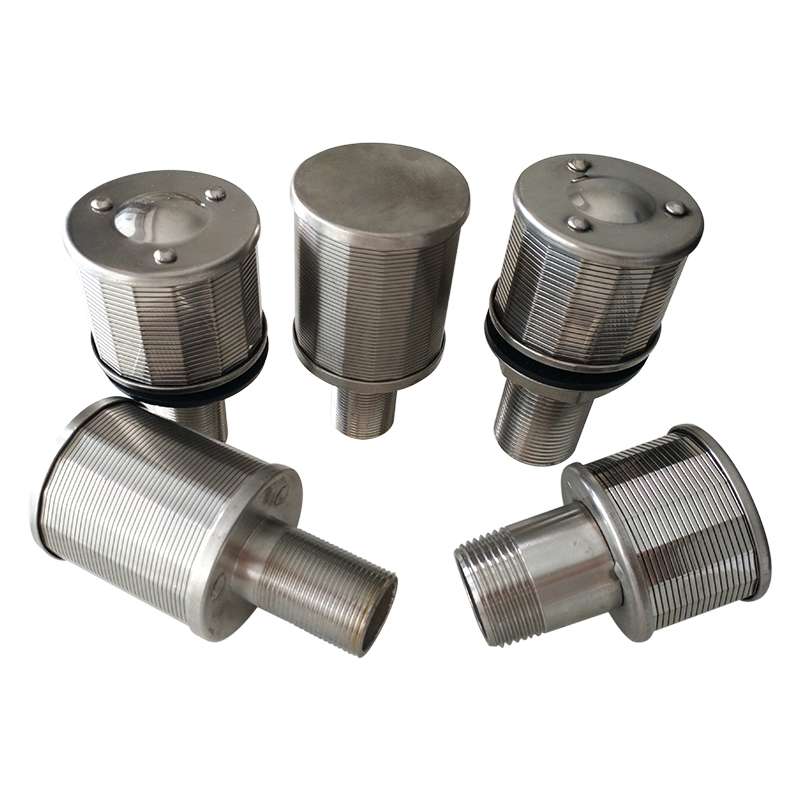

The wedge wire nozzle is manufactured from stainless steel material or other alloy material. The wedge wire nozzle features non-clogging, high filtering efficiency, and is economical. It has a wide range of applications in water treatment applications.
Click here to learn more: Stainless Steel VS. Plastic Filter Nozzle

The different wedge wire sizes and slot sizes can suit different class filtration.

Type of wedge wire nozzle

According to different applications, the wedge wire filter nozzles can be divided into the following main types:

The details types of wedge wire filter nozzles are as follow four types:

Applications of wedge wire nozzle

• Wedge wire nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. Such as under-drain media retention elements, flow distributors in demineralizers, water softeners in pressure, and gravity sand filters.
• Except for filtering and screening applications, wedge wire nozzles have other applications. Just install several nozzles uniformly to be used as collectors at the bottom of the vessels.

To get an accurate quotation, please advise the basic data, such as

* Material: such as stainless steel 304, 304L, 316,316L, or other?

* basic specification: please refer to the up drawing or show your drawing to us;

* spare parts: such as mat, nut, etc. if needed, please list it;

* flow rate, use industry

* quantity or any more detailed info not mentioned above;

If you need our help to design the filter nozzle for you, please supply this data or details drawing to us.
