wedge wire screen plate

Static Screen

The HydraSieve is a simple, highly efficient screen, designed for solid/liquid separation.
Description
Description
Static screen also called HydraSieve.
The HydraSieve is a simple, highly efficient screen, designed for solid/liquid separation. Thousands of worldwide installations on all types of applications prove its efficiency.
The static sieve screen is specially indicated for solids separation.
The static sieve is specially indicated for the separation of suspended solids inside liquids. This separation is accomplished in a fast way, without energy support, with almost absolute absence of maintenance and in conditions that make easier than in any other system the transportation of these solids, because they come out already dripped.
Operating principle
Its operation is based on the Coandă effect. This means that the liquid to be screened forms a hydraulic attachment to the bars of the screen plate. These bars, with a triangular sections, have rounded angles and have a wave configuration, as opposed to being straight. Thus, the liquid passes through the slots while the separated solids stay on the front face of the screen plate. The screen plate has three distinct angles.
This arrangement ensures:
  • Elimination of the majority of the liquid
  • Deceleration of the screenings
  • Drainage

The screen plate is supported by a frame that initially ensures quietness and even distribution of the effluent over the entire width of the unit and then accelerates the liquid down the screen plate. The filtered liquid is collected in the screen base. The screen plate and the frame form the HydraSieve screen.

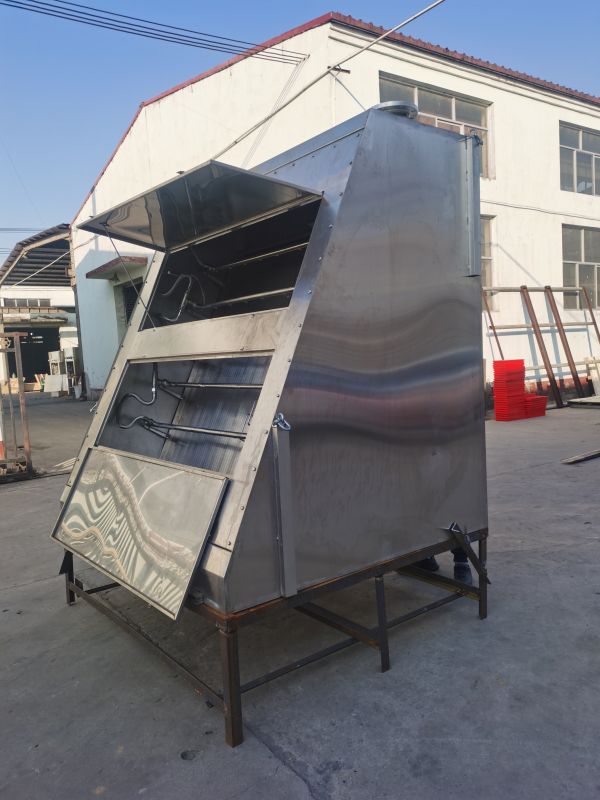

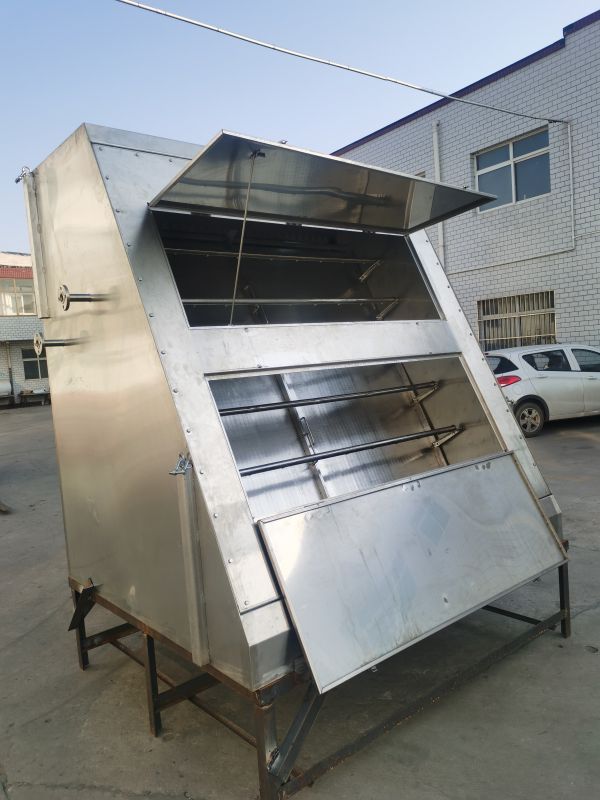

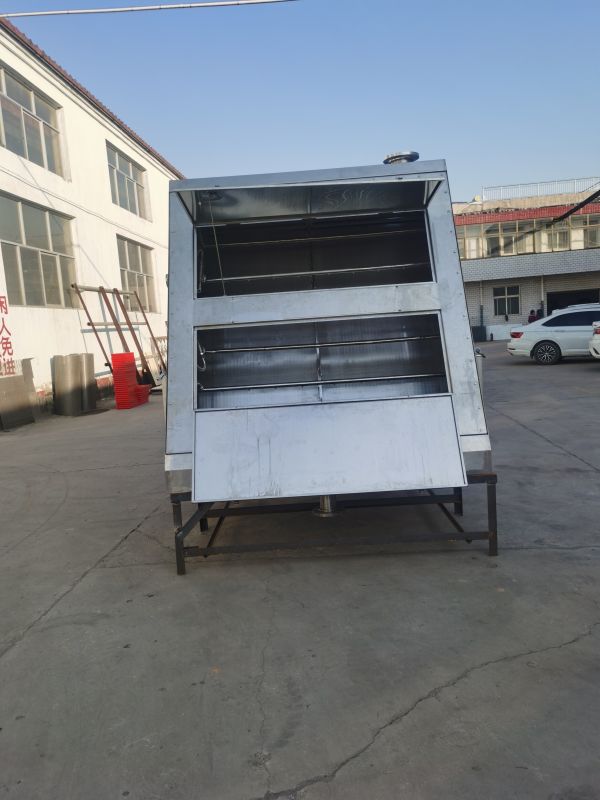

HydraSieve Static screen
Application

MUNICIPAL SEWAGE
• Domestic sewage
• Storm water screening
• Wash water from sand filters
• Sewer cleaning matters

RAW INTAKE WATER
• Screening industrial intake water
• Screening fire sprinkler water

INDUSTRIAL EFFLUENTS
• Fruit and vegetable canning
• Wine producers ans distilleries
• Meat and processed meals industry
• Slaughterhouse
• Fish processing
• Breweries and dairies
• Pig manure
• Textiles and laundries
• Tanneries and fellmongeries
• Chemical, pharmaceutical, refineries
• Pulp and paper
• Industrial effluents
• Recycling transport water

This application list is not exhaustive. For other applications, contact YUBO. E-mail: [email protected]
