Selecting the right wedge wire inner pipe is one of the most important decisions when designing reactor internals for catalytic, adsorption, ion exchange, and filtration systems. While external vessels often receive the most engineering attention, the internal distribution components largely determine flow uniformity, pressure drop, catalyst utilization, and overall operating efficiency.
An improperly designed inner pipe can create channeling, dead zones, uneven fluid distribution, excessive pressure loss, and premature catalyst degradation. Con versely, a well-engineered wedge wire inner pipe provides stable hydraulic performance, excellent mechanical strength, and long service life even under demanding industrial conditions.

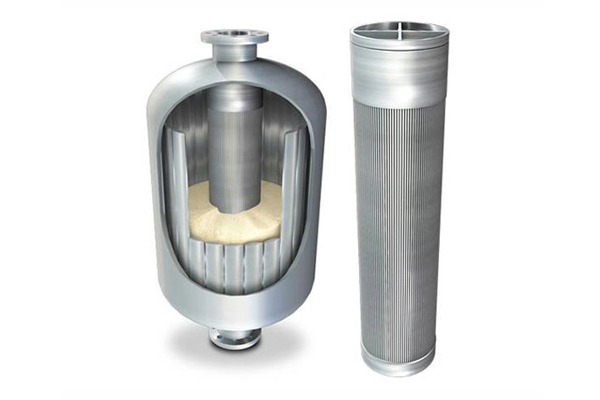

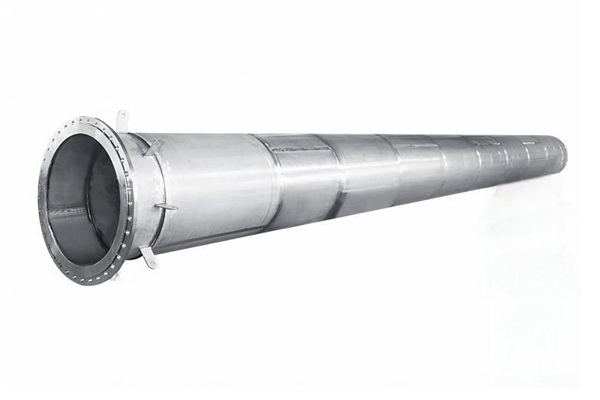

A wedge wire inner pipe is a cylindrical screen constructed by resistance welding V-shaped profile wires onto longitudinal support rods. The continuous slot openings provide high open area while maintaining excellent structural rigidity.
Unlike perforated pipes or drilled distributors, wedge wire construction offers continuous flow paths with superior resistance to plugging and lower hydraulic resistance.
Typical applications include:
Fixed-bed catalytic reactors
Radial flow reactors
Hydroprocessing reactors
Ion exchange vessels
Activated carbon filters
Water treatment reactors
Gas-liquid separation systems
Chemical processing equipment
Because every slot functions as an individual inlet or outlet, the entire pipe surface participates in flow distribution rather than only isolated perforations.
The inner pipe directly influences several key operating parameters.
Uniform radial flow allows the entire catalyst or media bed to participate in the reaction.
Poor distribution may result in:
Channeling
Dead zones
Reduced catalyst utilization
Local overheating
Lower conversion efficiency
In many catalytic reactors, improving flow uniformity can significantly increase effective catalyst utilization while extending catalyst life.
Pressure drop affects energy consumption throughout the process.
A wedge wire design minimizes resistance because of:
Continuous slot openings
High open area
Smooth wire profile
Reduced turbulence
Compared with conventional perforated pipes, wedge wire designs often achieve lower pressure losses at similar filtration ratings.
Reactor internals frequently operate under:
High pressure
Elevated temperatures
Thermal cycling
Vibration
Heavy catalyst loads
The welded support rod structure provides excellent resistance to deformation compared with thin perforated sheets.
Slot size is the most important design parameter.
The ideal slot should:
Retain catalyst particles
Prevent media loss
Maintain adequate flow capacity
Resist clogging
Typical industrial slot ranges include:
| Application | Typical Slot Size |
|---|---|
| Fine catalyst retention | 0.10–0.25 mm |
| General catalyst support | 0.25–0.50 mm |
| Activated carbon | 0.30–0.75 mm |
| Water treatment media | 0.20–1.00 mm |
Rather than selecting the smallest possible slot, engineers should match the opening to the particle size distribution while considering fouling tendencies and allowable pressure drop.
Open area determines how easily fluid passes through the screen.
Higher open area generally provides:
Lower pressure drop
Higher flow capacity
More uniform velocity distribution
Improved hydraulic efficiency
Industrial wedge wire inner pipes typically provide approximately 20%–45% open area, depending on wire profile, support spacing, and slot width.
The optimal value balances hydraulic performance with structural strength.
Material choice depends on operating conditions.
Common materials include:
| Material | Typical Applications |
|---|---|
| SS304 | General water treatment |
| SS316L | Chemical processing and seawater |
| Duplex 2205 | High chloride environments |
| Hastelloy | Strong acids and aggressive chemicals |
| Inconel | High-temperature reactors |
Material selection should consider:
Corrosion resistance
Temperature
Chloride concentration
Process chemistry
Mechanical loading
Although premium alloys have higher initial costs, they often reduce lifecycle maintenance expenses in aggressive service environments.
Large reactor internals must support substantial operating loads.
Design considerations include:
Pipe diameter
Wall thickness
Support rod dimensions
Wire profile height
Reinforcement rings
End connection design
For large-diameter reactors, finite element analysis (FEA) is often used to verify structural integrity under operating pressure and catalyst loading.
Even the best design performs poorly without precise manufacturing.
Key quality indicators include:
Accurate slot tolerances
Continuous resistance welds
Straightness
Roundness
Smooth surface finish
Dimensional consistency
Modern CNC-controlled resistance welding systems can typically maintain slot tolerances within ±0.03 mm, helping ensure consistent filtration and predictable hydraulic performance.
| Feature | Wedge Wire | Perforated Pipe |
|---|---|---|
| Flow distribution | Excellent | Moderate |
| Pressure drop | Low | Higher |
| Open area | High | Moderate |
| Anti-clogging | Excellent | Fair |
| Mechanical strength | High | Moderate |
| Cleaning efficiency | Excellent | Moderate |
| Service life | Long | Moderate |
Although perforated pipes remain suitable for some applications, wedge wire designs generally deliver better hydraulic efficiency and longer operational life in demanding reactor systems.
Well-designed wedge wire inner pipes are widely used in:
Hydrocracking reactors
Hydrotreating units
Fixed-bed catalytic reactors
Radial flow reactors
Sulfur recovery units
Ion exchange columns
Activated carbon vessels
Desalination pretreatment systems
Industrial water treatment plants
Petrochemical processing facilities
Their versatility makes them suitable wherever reliable flow distribution and particle retention are required.
Before finalizing a specification, engineers should evaluate:
Particle size distribution
Required filtration accuracy
Design flow rate
Allowable pressure drop
Operating pressure and temperature
Corrosion environment
Mechanical loading
Cleaning and maintenance strategy
Expected service life
Compliance with applicable industry standards
Considering these factors together helps avoid overspecification while ensuring dependable long-term performance.
The optimal slot size depends on the catalyst particle size distribution. A common engineering practice is to select a slot opening approximately 20–30% smaller than the smallest acceptable catalyst particle to minimize media loss while maintaining adequate flow.
Their continuous V-shaped slots create a larger effective flow area and smoother fluid paths than conventional perforated holes, reducing turbulence and hydraulic resistance.
SS316L is widely chosen for chemical processing and water treatment because it offers excellent corrosion resistance, good weldability, and reliable mechanical performance. More demanding environments may require Duplex stainless steel or nickel-based alloys.
Yes. Manufacturers can tailor diameter, length, slot size, wire profile, support rod spacing, end connections, and material grade to match specific reactor designs and process conditions.
Choosing the right wedge wire inner pipe involves much more than selecting a slot size. Hydraulic performance, structural strength, material compatibility, manufacturing precision, and reactor operating conditions all contribute to long-term reliability and process efficiency.
By carefully balancing these design factors, engineers can achieve more uniform flow distribution, lower pressure drop, improved catalyst utilization, and reduced maintenance costs. For modern reactor internals operating in demanding industrial environments, a properly engineered wedge wire inner pipe remains one of the most effective solutions for maximizing both performance and service life.
