Flow distribution is one of the most critical factors affecting the performance of process towers, ion exchange vessels, catalyst reactors, and water treatment systems. Even when high-quality media or catalysts are used, poor fluid distribution can create channeling, dead zones, and uneven bed utilization, reducing overall process efficiency.
Tower internal wedge wire pipes are specifically designed to address these challenges. By combining a high open-area structure with continuous V-shaped slots, they promote uniform flow distribution, minimize pressure drop, and improve mass transfer efficiency throughout the vessel.
In packed towers and media-filled vessels, process performance depends on how evenly liquids or gases are distributed across the entire cross-section.
Uneven flow can cause:
Channeling through preferred flow paths
Dead zones with little or no fluid contact
Reduced catalyst utilization
Lower mass transfer efficiency
Increased operating costs
A well-designed flow distribution system ensures that all sections of the media bed receive similar hydraulic loading, maximizing process performance and equipment utilization.

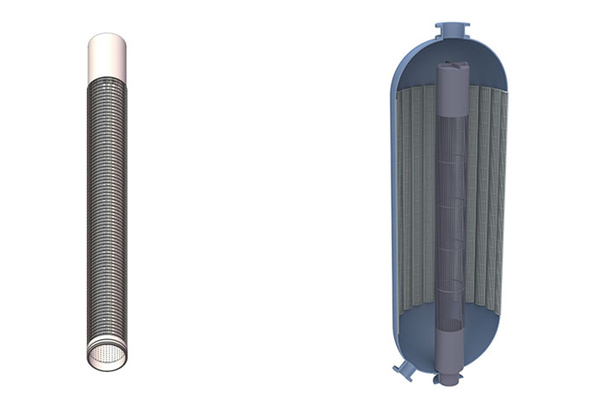

Tower internal wedge wire pipes are manufactured by resistance-welding V-shaped profile wires to support rods, creating precise continuous slots.
This design offers several important advantages:
Typical open areas range from 15% to 40%, significantly higher than many perforated pipe designs.
Benefits include:
Higher flow capacity
Lower hydraulic resistance
Improved distribution uniformity
Reduced energy consumption
The wedge-shaped slot is narrow at the surface and widens internally.
As particles move through the slot, they are less likely to become trapped, helping to reduce fouling and maintenance requirements.
The welded construction provides excellent rigidity and resistance to pressure fluctuations, vibration, and media loading.
Open area directly influences how evenly fluid is distributed throughout a tower.
When the open area is too low, localized high-velocity zones can develop, resulting in uneven flow patterns.
| Open Area | Distribution Performance |
|---|---|
| Below 15% | Limited |
| 15–25% | Moderate |
| 25–35% | Good |
| Above 35% | Excellent |
A higher open area allows fluid to pass through more evenly, reducing localized turbulence and improving overall hydraulic performance.
This is particularly important in large-diameter vessels where maintaining uniform flow becomes increasingly challenging.
Pressure drop is a key indicator of tower efficiency.
Excessive pressure loss can:
Increase pumping costs
Reduce process throughput
Create uneven flow distribution
Lower energy efficiency
Compared with conventional perforated systems, wedge wire pipes provide larger effective flow areas and smoother hydraulic paths.
As a result, they typically achieve:
Lower pressure drop
More stable operating conditions
Improved process efficiency
Reduced energy consumption
For high-flow industrial applications, even small reductions in pressure drop can generate substantial operating cost savings over time.

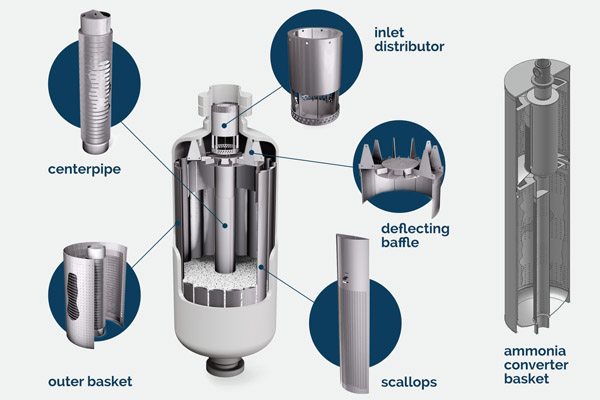

Flow distribution depends not only on the screen itself but also on the design of the hub-header and lateral assembly.
Several factors influence system performance:
Proper spacing ensures balanced fluid distribution across the vessel.
Adequately sized laterals help minimize internal pressure losses and maintain consistent flow rates.
Increasing the number of collection or distribution arms improves coverage and reduces localized flow concentrations.
Common configurations include:
Spider-arm distributors
Fishbone lateral systems
Radial collector assemblies
Hub-and-lateral designs
Each configuration is se lected according to vessel geometry and process requirements.
In many applications, the ultimate goal is not simply moving fluid but maximizing contact between phases.
Uniform flow distribution improves:
Gas-liquid contact efficiency
Liquid-solid interaction
Catalyst utilization
Bed wetting performance
Poor distribution often results in bypassing and channeling, where only part of the media bed actively participates in the process.
By promoting even flow patterns, wedge wire internals help improve overall mass transfer efficiency and process productivity.
Slot size selection is critical for balancing media retention and hydraulic performance.
Typical slot ranges include:
| Application | Typical Slot Opening |
|---|---|
| Ion Exchange Resin | 0.15–0.30 mm |
| Activated Carbon | 0.20–0.50 mm |
| Catalyst Support Systems | 0.30–1.00 mm |
| Gravel Support Media | 1.00 mm and above |
If slots are too large, media loss may occur.
If slots are too small, pressure drop increases and flow capacity decreases.
For most applications, slot openings are se lected slightly smaller than the smallest media particle size to ensure reliable retention while maintaining efficient flow.
Tower internals often operate under demanding conditions involving:
High temperatures
Corrosive chemicals
Thermal cycling
Mechanical loading
Material selection therefore plays a major role in long-term reliability.
Common materials include:
Suitable for general industrial and water treatment applications.
Provides enhanced corrosion resistance in chemical and marine environments.
Offers higher strength and improved resistance to chloride-induced corrosion.
Used in highly aggressive chemical processes and extreme operating conditions.
Proper material selection helps extend service life while reducing maintenance requirements.
Tower internal wedge wire pipes are widely used in:
Providing uniform flow distribution and reliable resin retention.
Supporting catalyst beds while improving reactant distribution.
Enhancing gas-liquid contact efficiency.
Reducing pressure losses while maximizing throughput.
Maintaining stable operation under demanding process conditions.
Although wedge wire internals typically require a higher initial investment than perforated alternatives, they often provide lower total ownership costs.
Advantages include:
Reduced clogging
Lower maintenance frequency
Longer service life
Improved energy efficiency
Reduced process downtime
These benefits make wedge wire systems a cost-effective long-term solution for critical tower applications.
It distributes or collects fluids uniformly while retaining media and minimizing pressure loss.
Uniform flow improves mass transfer efficiency, media utilization, and overall process performance.
The V-shaped slot widens internally, preventing particles from becoming trapped within the screen structure.
The slot opening is typically chosen slightly smaller than the smallest media particle to prevent media loss while maintaining adequate flow.
Water treatment, petrochemical processing, refining, chemical manufacturing, and catalyst reactor systems.
Tower internal wedge wire pipes play a vital role in achieving efficient flow distribution and reliable process performance. Their high open area, anti-clogging slot geometry, low pressure drop, and excellent mechanical strength make them ideal for demanding industrial applications. By improving hydraulic uniformity, enhancing mass transfer efficiency, and reducing maintenance requirements, wedge wire internals help process facilities maximize productivity while lowering long-term operating costs.
