Wedge wire centrifuge basket filters are widely used in coal preparation, mining, salt recovery, potash processing, and chemical manufacturing. Their ability to efficiently separate solids from liquids while maintaining high throughput makes them a critical component in modern dewatering systems.
Among all design parameters, slot size has the greatest influence on centrifuge basket performance. It directly affects solids recovery, moisture reduction, throughput capacity, wear resistance, and operating costs. Selecting the correct slot size is therefore essential for achieving the right balance between product quality and production efficiency.

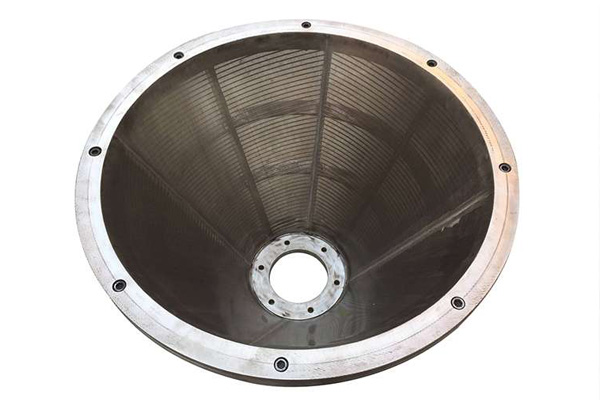

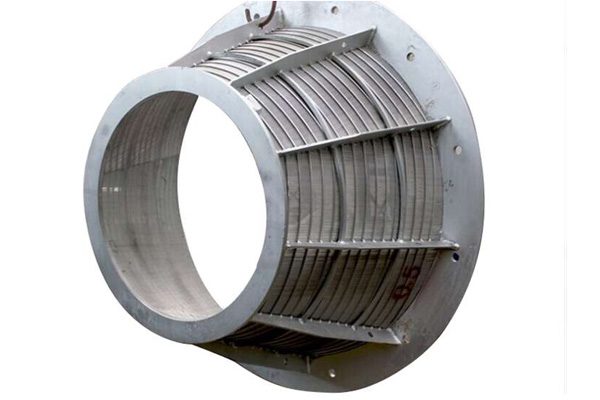

A wedge wire centrifuge basket filter is a cylindrical or conical screening element manufactured by welding V-shaped profile wires onto support rods.
Unlike perforated plates or woven mesh screens, wedge wire baskets feature continuous slots that widen beneath the screening surface. This unique design allows liquids and fine particles to pass through efficiently while minimizing the risk of clogging.
Key advantages include:
High open area
Excellent drainage performance
Superior wear resistance
Reduced screen blinding
Long service life
These benefits make wedge wire baskets the preferred choice for demanding solid-liquid separation applications.
Slot size is the primary factor controlling separation efficiency.
A change of only a few tenths of a millimeter can significantly affect:
Solids recovery rates
Product moisture content
Centrifuge throughput
Basket wear life
Maintenance frequency
In many industrial operations, optimizing slot size can improve production efficiency without requiring modifications to the centrifuge itself.
The effectiveness of wedge wire technology comes from its V-shaped profile wire design.
The narrow opening faces the process material, while the slot gradually widens toward the discharge side. Once particles pass through the surface opening, they continue moving through the wider channel rather than becoming trapped inside the screen.
This self-cleaning geometry offers several advantages:
Reduced plugging
Stable flow rates
Lower maintenance requirements
Improved filtration consistency
Compared with conventional screening technologies, wedge wire baskets maintain their performance for longer operating periods.
Throughput capacity refers to the volume of material a centrifuge can process within a given time.
Generally, larger slot openings allow liquid to drain more rapidly, increasing overall throughput.
The relationship can be illustrated as follows:
| Slot Size | Relative Flow Capacity |
|---|---|
| 0.25 mm | 100% |
| 0.50 mm | 120–140% |
| 0.75 mm | 140–180% |
While actual performance depends on feed characteristics and centrifuge design, larger slots typically reduce hydraulic resistance and improve drainage rates.
However, higher throughput often comes at the expense of solids retention.
One of the primary objectives of centrifuge operation is moisture reduction.
Larger slot sizes generally provide:
Faster liquid discharge
Lower final moisture content
Higher production rates
Increased loss of fine particles
Reduced solids recovery
Conversely, smaller slots improve particle retention but may restrict drainage and produce a wetter final product.
Selecting the correct slot size requires balancing dewatering performance with product recovery requirements.
Wear resistance is another important consideration, particularly in abrasive applications such as coal, mineral, and potash processing.
Smaller slot openings can increase flow velocity through the screen surface, which may accelerate abrasion over time.
Additional factors affecting wear include:
Particle hardness
Solids concentration
Operating speed
Material selection
Using properly designed wedge wire profiles and high-quality stainless steel materials helps maintain slot integrity and extend basket service life.
The optimal slot size varies depending on the material being processed and the desired operating outcome.
| Application | Typical Slot Size |
|---|---|
| Coal Dewatering | 0.25–0.50 mm |
| Potash Processing | 0.25–0.75 mm |
| Salt Recovery | 0.15–0.50 mm |
| Chemical Crystals | 0.10–0.30 mm |
| Mineral Processing | 0.30–1.00 mm |
These values serve as general guidelines and should be verified through testing and process evaluation.
Many operators compare wedge wire baskets with traditional perforated plate designs.
| Feature | Wedge Wire Basket | Perforated Basket |
|---|---|---|
| Open Area | High | Moderate |
| Clogging Resistance | Excellent | Moderate |
| Flow Capacity | Higher | Lower |
| Dewatering Efficiency | Better | Good |
| Wear Life | Longer | Shorter |
| Maintenance Frequency | Lower | Higher |
The higher open area and self-cleaning characteristics of wedge wire baskets often result in improved overall performance.
Selecting an inappropriate slot size can have significant operational consequences.
If slots are too small:
Throughput decreases
Moisture content increases
Cleaning frequency rises
If slots are too large:
Valuable product is lost
Solids recovery declines
Product quality may be affected
Even a small reduction in recovery efficiency can result in substantial financial losses over time, particularly in high-volume processing operations.
For this reason, slot size should be evaluated as a critical process variable rather than a simple basket specification.
When selecting a wedge wire centrifuge basket filter, consider the following factors:
✓ Particle size distribution
✓ Target moisture content
✓ Required throughput
✓ Product value
✓ Abrasion characteristics
✓ Maintenance requirements
✓ Desired basket service life
A thorough evaluation of these variables helps ensure optimal centrifuge performance and long-term operational efficiency.
For many dewatering applications, slot sizes between 0.25 mm and 0.50 mm are commonly used.
Yes. Smaller slots typically retain more fine particles but may reduce throughput and increase moisture content.
Yes. Larger openings allow faster liquid discharge, improving processing capacity and reducing hydraulic resistance.
Extremely small slots may experience higher wear rates due to increased flow velocity and abrasive particle contact.
They are widely used in coal preparation, mining, potash recovery, salt processing, and chemical manufacturing.
Slot size is one of the most influential factors affecting the performance of a wedge wire centrifuge basket filter. It directly impacts throughput capacity, dewatering efficiency, solids recovery, wear life, and operating costs.
By carefully evaluating material characteristics, process objectives, and operating conditions, engineers can select the optimal slot size for their application. Combined with the high open area and self-cleaning advantages of wedge wire technology, a properly designed centrifuge basket can deliver reliable performance, improved product recovery, and lower long-term operating costs.
