In many fixed-bed reactors and adsorption systems, achieving uniform radial flow distribution is essential for maximizing process efficiency. Uneven fluid distribution can lead to channeling, pressure imbalance, inefficient catalyst utilization, and reduced equipment performance.

One of the critical components used to improve radial flow distribution is the Vee Wire Scallop. Installed as part of reactor internals, Vee wire scallops provide a controlled flow path between the vessel wall and the catalyst bed while offering excellent mechanical support, high open area, and reliable particle retention.

Unlike traditional perforated plates or simple support screens, Vee wire scallops use a continuous wedge wire structure that combines hydraulic efficiency with structural strength. They are widely applied in radial flow reactors, adsorption vessels, ion exchange systems, and other process equipment where stable fluid distribution is required.

What Are Vee Wire Scallops?

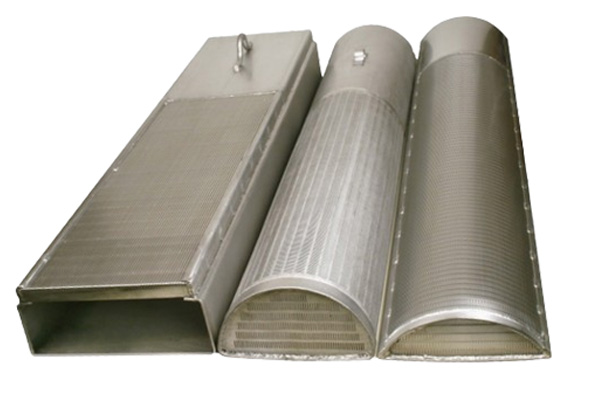

Vee wire scallops are curved wedge wire screen sections designed to fit along the inner circumference of a reactor vessel. They are typically installed between the reactor shell and the catalyst or adsorbent bed to collect or distribute process fluids during radial flow operation.

The structure consists of:

• V-shaped profile wires

• Support rods

• Curved screen panels

• Reinforcing components

• Mounting frames or brackets

The V-shaped wires create continuous slot openings that allow fluid to pass while preventing catalyst particles, resin beads, or granular media from escaping.

Depending on the reactor design, scallops can function as:

• Radial flow collection screens

• Radial flow distribution screens

• Catalyst retention components

• Support and separation elements

How Do Vee Wire Scallops Work?

1. Creating Uniform Radial Flow Paths

In radial flow reactors, fluid typically moves horizontally through the catalyst bed rather than vertically.

The flow pattern requires an internal structure that can:

• Receive fluid evenly around the vessel circumference

• Maintain consistent velocity distribution

• Prevent localized high-flow zones

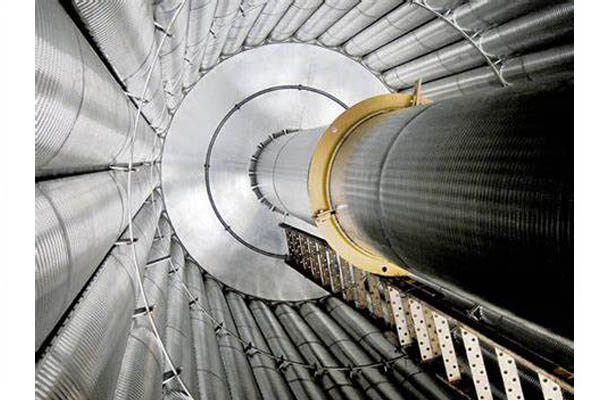

Vee wire scallops create a continuous flow channel around the reactor wall, allowing fluids to enter or exit evenly through the catalyst bed.

This reduces:

• Channeling

• Dead zones

• Uneven catalyst utilization

• Local pressure differences

A uniform flow pattern improves overall reactor efficiency and helps maximize catalyst performance.

2. Providing Precise Particle Retention

Catalyst particles and adsorption media must remain inside the designated bed area while allowing process fluids to pass freely.

The slot opening of Vee wire scallops is carefully se lected according to:

• Catalyst particle size

• Resin bead diameter

• Required pressure drop

• Fouling tendency

The continuous wedge wire slot design prevents particles from becoming trapped because the opening widens inward.

Compared with conventional mesh screens, this structure provides:

• Better anti-clogging performance

• Easier cleaning

• More stable flow resistance

3. Reducing Pressure Drop

Pressure drop is a major consideration in reactor operation because excessive resistance increases energy consumption and reduces process efficiency.

Vee wire scallops minimize pressure loss through:

• High open area

• Smooth wire geometry

• Continuous slot openings

• Reduced turbulence

A properly designed scallop system maintains efficient fluid movement while protecting catalyst materials.

Key Advantages of Vee Wire Scallops in Reactor Internals

High Open Area for Better Hydraulic Performance

The continuous slot structure provides a higher effective open area compared with many perforated designs.

Benefits include:

• Increased flow capacity

• Lower pressure loss

• Improved fluid distribution

• Reduced operating energy requirements

Higher open area is especially valuable in large radial flow reactors where maintaining uniform velocity is challenging.

Strong Mechanical Support

Reactor internals must withstand demanding operating conditions, including:

• Catalyst loading weight

• Differential pressure

• Thermal expansion

• Long-term operation

Resistance-welded wedge wire construction provides:

• High structural strength

• Stable geometry

• Resistance to deformation

• Long service life

This makes Vee wire scallops suitable for large industrial reactors.

Excellent Resistance to Fouling

Traditional screens with narrow openings may accumulate particles and experience rapid blockage.

The V-shaped slot profile helps reduce:

• Particle bridging

• Surface buildup

• Plugging risks

This improves reliability during continuous operation and reduces maintenance requirements.

Design Considerations for Selecting Vee Wire Scallops

1. Slot Size

Slot selection is one of the most important design parameters.

A slot that is too small may increase pressure drop, while an oversized slot may allow catalyst loss.

Common factors include:

• Catalyst particle size distribution

• Media retention requirements

• Fluid viscosity

• Contamination level

For many catalyst and adsorption applications, slot sizes are typically se lected within approximately 0.15–1.00 mm, depending on process requirements.

2. Material Selection

The operating environment determines the appropriate material.

Common options include:

Material selection should consider:

• Temperature

• Corrosion potential

• Process chemistry

• Mechanical requirements

3. Reactor Geometry

Because scallops are installed along curved vessel walls, accurate dimensional design is essential.

Important parameters include:

• Vessel diameter

• Scallop curvature

• Screen height

• Support configuration

• Connection method

Proper fitting ensures uniform flow distribution around the entire reactor circumference.

Applications of Vee Wire Scallops

Vee wire scallops are widely used in:

• Radial flow catalytic reactors

• Hydroprocessing units

• Adsorption vessels

• Ion exchange systems

• Gas purification equipment

• Chemical processing reactors

• Petrochemical applications

They are particularly valuable in systems where catalyst efficiency and flow distribution directly affect production performance.

Vee Wire Scallops vs Traditional Perforated Screens

The wedge wire design provides a more efficient solution for demanding radial flow applications.

FAQ

1. What is the main purpose of Vee Wire Scallops?

The main purpose is to provide uniform radial flow distribution while retaining catalyst or adsorption media inside the reactor bed.

2. Why are wedge wire scallops preferred over perforated plates?

They offer higher open area, lower pressure drop, better resistance to clogging, and stronger mechanical performance.

3. How is the slot size se lected?

Slot size is determined by catalyst particle size, required retention efficiency, flow requirements, and acceptable pressure drop.

4. Where are Vee Wire Scallops commonly used?

They are commonly used in radial flow reactors, adsorption vessels, ion exchange equipment, and petrochemical processing systems.

Vee wire scallops are essential components in radial flow internals because they combine efficient fluid distribution, reliable particle retention, and long-term mechanical durability. Their continuous V-shaped slot design enables lower pressure drop, improved flow uniformity, and reduced fouling compared with traditional screening solutions.

For reactor designers, selecting the correct slot size, material, and structural configuration is critical to achieving stable operation and maximizing catalyst utilization. As industrial processes continue to demand higher efficiency and reliability, Vee wire scallops remain a proven solution for advanced radial flow reactor designs.
