In radial flow reactors and industrial process vessels, achieving uniform fluid distribution is essential for maintaining reaction efficiency, reducing pressure loss, and extending equipment performance. As a critical internal component, Vee wire scallops play an important role in collecting and distributing fluids while supporting reliable operation under demanding process conditions.
A properly sel ected Vee wire scallop for radial flow internals can improve flow balance, reduce channeling, prevent media migration, and enhance overall reactor efficiency. However, selecting the right design requires careful consideration of slot size, open area, material compatibility, mechanical strength, and operating conditions.

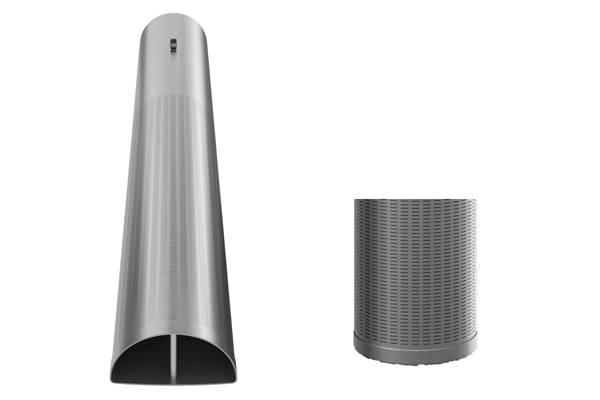

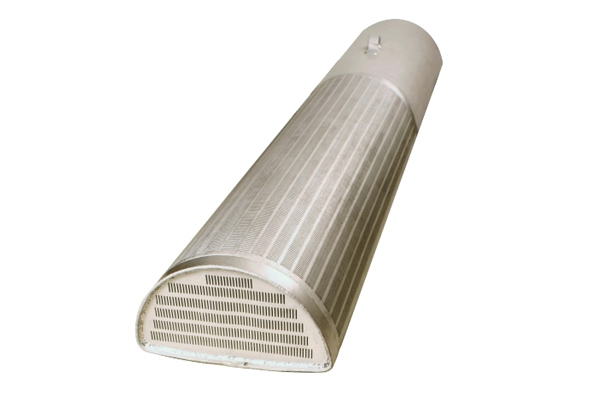

A Vee wire scallop is a wedge wire-based internal component installed vertically or horizontally inside radial flow reactors, filtration vessels, and process equipment.
It is typically fabricated by welding V-shaped profile wires onto support rods, creating continuous slot openings along the surface.
In radial flow systems, fluid moves through the catalyst or media bed in a radial direction and then passes through the scallops for collection or distribution.
The main functions of Vee wire scallops include:
Uniform fluid collection
Flow distribution control
Catalyst or media retention
Prevention of particle migration
Reduction of pressure drop
Common applications include:
Hydrogenation reactors
Ammonia synthesis systems
Petrochemical reactors
Ion exchange vessels
Adsorption systems
Radial flow internals operate under complex hydraulic conditions.
Improper scallop selection may lead to:
Uneven flow distribution
Increased pressure drop
Catalyst channeling
Reduced reaction efficiency
Premature maintenance
A well-designed Vee wire scallop helps maintain:
Stable radial flow patterns
Effective catalyst utilization
Lower energy consumption
Longer operating cycles
Therefore, the selection process should focus on both filtration performance and hydraulic efficiency.
Slot size is one of the most important parameters when selecting Vee wire scallops.
The slot opening determines the relationship between:
Fluid flow capacity
Particle retention
Pressure drop
Fouling resistance
A smaller slot opening provides:
Suitable for applications requiring strict control of catalyst or resin movement.
Reduces the risk of media loss and downstream contamination.
However, excessively small slots may cause:
Higher flow resistance
Faster fouling
Increased pressure drop
A larger slot improves flow capacity but may reduce retention performance.
The optimal slot size should be se lected based on:
Catalyst particle size
Media characteristics
Fluid properties
Required filtration accuracy
Open area directly influences hydraulic performance.
A higher open area allows fluids to pass through the scallop surface more efficiently.
Benefits include:
Lower pressure loss
Improved flow distribution
Reduced velocity variation
Better reactor performance
In radial flow reactors, uneven resistance across internal components can create flow imbalance.
Optimized Vee wire scallop designs help maintain consistent fluid movement throughout the reactor bed.
The unique V-shaped slot geometry is one of the major advantages of wedge wire technology.
Unlike traditional mesh screens, wedge wire slots become wider toward the inside.
This design helps prevent particles from becoming trapped.
Advantages include:
Reduced clogging
Easier cleaning
More stable pressure drop
Longer service life
This is particularly important in applications involving:
Fine catalyst particles
Suspended solids
Sticky process materials
Radial flow internals often operate under:
High temperatures
Corrosive chemicals
Pressure fluctuations
Continuous operation
Material selection directly affects long-term reliability.
Common materials include:
| Material | Typical Applications |
|---|---|
| SS304 | General industrial processes |
| SS316L | Chemical and petrochemical applications |
| Duplex Stainless Steel | High corrosion environments |
| Nickel Alloys | Highly aggressive chemical conditions |
Choosing the correct material helps prevent:
Corrosion damage
Structural weakening
Unexpected downtime
Vee wire scallops must withstand mechanical loads during operation.
Potential stresses include:
Catalyst weight
Pressure differences
Fluid impact
Thermal expansion
A high-quality welded wedge wire structure provides:
Strong wire-to-support connections
Accurate slot geometry
Resistance to deformation
Long operating life
For large reactors, structural stability is especially important because internal failure can cause significant production losses.
The primary purpose of radial flow internals is to achieve uniform fluid movement through the reactor bed.
Poor distribution can create:
Dead zones
Channeling
Uneven catalyst utilization
Reduced conversion efficiency
Properly designed Vee wire scallops help maintain:
Balanced pressure distribution
Uniform fluid collection
Improved reactor performance
This makes scallop design a critical factor in overall reactor optimization.
The performance of a Vee wire scallop depends not only on design but also manufacturing precision.
Important manufacturing factors include:
Consistent slot openings ensure predictable flow behavior.
Strong welding improves:
Mechanical strength
Structural stability
Resistance to vibration
Proper geometry ensures correct installation and long-term operation.
For critical reactor applications, manufacturing quality is essential for preventing premature failure.
Used for:
Catalyst retention
Fluid collection
Flow distribution
Applications include:
Hydroprocessing reactors
Reforming systems
Chemical conversion processes
Used for:
Media support
Uniform flow control
Used for:
Resin retention
Regeneration flow management
Before selecting a Vee wire scallop design, engineers should evaluate:
Including:
Temperature
Pressure
Fluid characteristics
Chemical environment
Including:
Required flow rate
Pressure drop limitations
Distribution requirements
Including:
Particle size
Density
Stability
Select materials according to corrosion and operating conditions.
Ensure:
Accurate slot control
Strong welding quality
Reliable dimensional consistency
Vee wire scallops collect or distribute fluids while retaining catalyst or media and maintaining uniform radial flow.
Slot size influences flow capacity, particle retention, pressure drop, and fouling resistance.
Because they provide high open area, precise slot control, strong mechanical performance, and reduced clogging.
SS304, SS316L, duplex stainless steel, and nickel alloys are commonly sel ected based on operating conditions.
Selecting the right Vee wire scallops for high-performance radial flow internals requires balancing hydraulic efficiency, particle retention, mechanical strength, and material durability.
With optimized slot design, high open area, V-shaped anti-clogging structure, and reliable manufacturing quality, Vee wire scallops help improve reactor performance, maintain uniform flow distribution, and extend equipment service life.
For demanding radial flow applications, the correct scallop design is not only a filtration choice—it is a critical factor in achieving long-term process reliability and operational efficiency.
