What Is a Stainless Steel Filter Nozzle? Structure, Types, and Functions

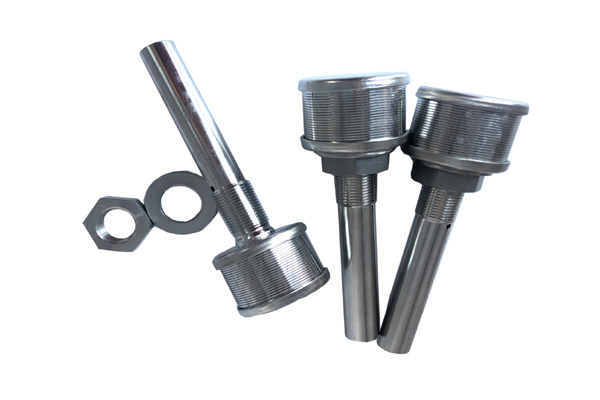

What Is a Stainless Steel Filter Nozzle?
A stainless steel filter nozzle is a device used in filtration systems to separate contaminants from water or other fluids. These nozzles help to retain granular media like sand, carbon, or zeolite within the filtration tank while allowing water or gas to pass through. They are made from stainless steel, which offers enhanced durability and resistance to corrosion compared to plastic alternatives.
The nozzle typically uses a wedge wire screen, which features precisely spaced slots that enable water to flow through while keeping larger particles trapped. Stainless steel nozzles are ideal for high-flow systems and applications where durability is critical.
Key Components of a Stainless Steel Filter Nozzle
1.Wedge Wire Screen: The core feature of a stainless steel nozzle is the wedge wire screen. This consists of a series of wedge-shaped wires welded together to create narrow slots. These slots allow water or gas to flow through while retaining larger particles.
2.Stainless Steel Construction: The entire nozzle is made from stainless steel, which provides excellent resistance to wear, corrosion, and high temperatures. This makes it suitable for harsh environments and long-term use.
3.Flow Distribution: Stainless steel nozzles are designed to ensure even flow distribution across the filtration system. This prevents clogging and ensures optimal filtration performance.
Types of Stainless Steel Filter Nozzles
Different applications require different nozzle designs. The most common types include:
1. Single Head and Double Head Nozzles
Standard configuration for most filtration systems
Suitable for liquid-solid and gas-solid separation
Double-head designs provide increased filtration area
2. Long-Handle Nozzles
Extended tailpipe design
Common in air-water backwash systems
Helps improve distribution in deeper filter beds
3. Double Flow and Plate-Type Nozzles
Designed for high-flow systems
Used in applications requiring strict flow control

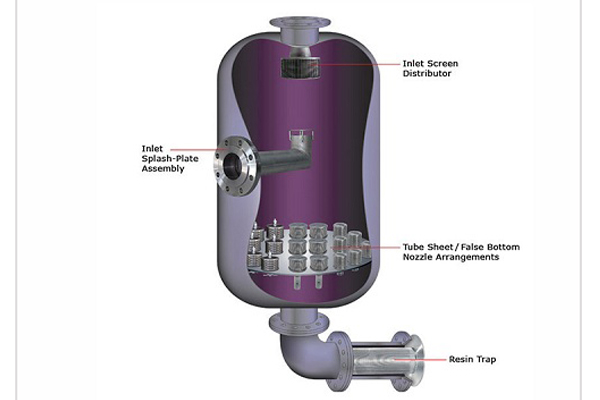

Often installed on support plates or false bottoms
Functions of Stainless Steel Filter Nozzles
The primary role of stainless steel filter nozzles is to control the flow of water or gas through granular media while retaining the media itself. Here are the key functions:
1.Media Retention: The screen nozzle prevents granular media from escaping the filtration system while allowing clean water or gas to flow through.
2.High Flow Rate: The nozzle’s design allows for high flow rates, making it suitable for large-scale filtration systems.
3.Corrosion Resistance: Stainless steel resistance to corrosion makes these nozzles ideal for use in harsh environments, including wastewater treatment and industrial applications.
4.Uniform Flow Distribution: Stainless steel filter nozzles ensure that water or gas flows evenly across the filter bed, promoting consistent filtration and reducing the chance of clogging.
5.Durability: Compared to plastic nozzles, stainless steel nozzles last longer and can withstand the harshest conditions, making them a reliable long-term solution.
Typical Applications of Stainless Steel Filter Nozzles
Stainless steel filter nozzles are widely used across industries:
Water Treatment
Drinking water purification systems
Wastewater treatment plants
Rapid sand filters
Ion Exchange Systems
Water softening units
Deionization (DI) systems
Mixed bed polishing units
Industrial Filtration
Petrochemical processing
Catalyst support and retention
Process water filtration
Food and Beverage
Syrup and liquid filtration
Process water treatment
Hygienic filtration systems
Why Choose Stainless Steel Filter Nozzles?
1.Longer Lifespan: Stainless steel nozzles are more durable than plastic alternatives, reducing the need for frequent replacements.
2.Better Filtration Performance: These nozzles ensure more efficient filtration by preventing media loss and offering high flow capacity.
3.Cost-Effectiveness: Though they have a higher initial cost, their durability and longevity make stainless steel nozzles a cost-effective choice over time.
Stainless steel filter nozzles are essential components in modern filtration systems. They offer significant advantages over traditional plastic nozzles, including better performance, higher durability, and resistance to harsh environments. Whether you are involved in water treatment, wastewater processing, or oil filtration, these nozzles provide reliable and long-lasting performance.
At YUBO Filtration, we offer high-quality stainless steel filter nozzles designed to meet your filtration needs. Reach out to learn more about how these essential components can improve your filtration system.
Frequently Asked Questions (FAQ)
What slot size should I choose?
The slot size should generally be 30–50% smaller than the filter media size to prevent leakage while maintaining flow.
Can stainless steel filter nozzles be used in corrosive environments?
Yes. Using materials like SS316L improves resistance to corrosion, making them suitable for chemical and marine environments.
How long do stainless steel filter nozzles last?
With proper operation and maintenance, they can last several years to over a decade, depending on working conditions.
Are they suitable for high-temperature applications?
Yes. Stainless steel filter nozzles can typically withstand temperatures above 135°C, making them suitable for industrial processes.
