How Does a Wedge Wire Screen Nozzle Work in Filtration Systems?
Wedge wire screen nozzles are essential components in filtration systems, known for their efficient liquid-solid separation capabilities. Their unique design and functionality have made them a preferred choice in various industries, including water treatment, industrial filtration, and solid-liquid separation.

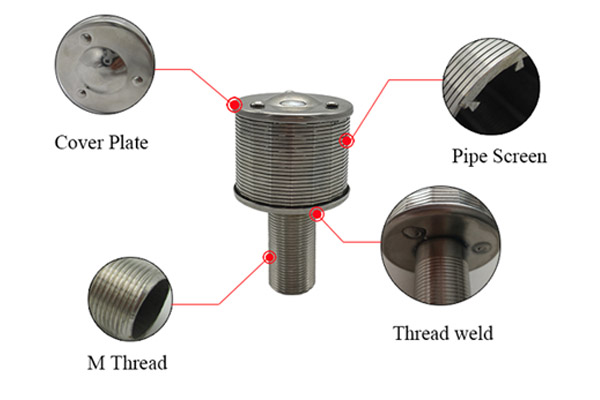

Understanding the Wedge Wire Screen Nozzle Design
A wedge wire screen nozzle is built using V-shaped profile wires welded onto cylindrical support rods. This design forms continuous, non-clogging slots that facilitate efficient filtration, allowing liquid to flow while blocking larger particles. The inwardly expanding slots prevent debris from getting stuck, which ensures a self-cleaning process, even in challenging conditions like high-pressure environments.
Key Design Features:
V-Shaped Profile Wire: The unique triangular or V-shaped wire creates a slot with a narrow opening on the outside and a wider opening on the inside. This allows particles to pass through more easily without getting trapped, preventing clogging and ensuring smoother filtration.
Continuous Slots: The wire wraps around a support structure to create long, uninterrupted slots. This feature maximizes the open area, reduces pressure drop, and increases flow rates, making the filtration process highly efficient.
Durability: Made from stainless steel (often 304 or 316L), wedge wire screen nozzles are corrosion-resistant and offer high mechanical strength, making them suitable for harsh and high-pressure environments.
Flow Direction Flexibility: Wedge wire nozzles can operate in either outside-to-inside” or “inside-to-outside” flow directions. The "outside-to-inside" direction is typically used for collecting filtrates, while the "inside-to-outside" configuration is ideal for distributing liquids.
How Does It Work?
The wedge wire screen nozzle functions based on its ability to create continuous, narrow slots that separate solids from liquids with precision. Here’s how it works in a typical filtration process:
1.Liquid Flow: The liquid containing suspended particles enters the filtration system. As it passes through the wedge wire screen nozzle, only particles smaller than the slot width are allowed to pass through.
2.Particle Separation: Larger particles are retained by the nozzle, preventing clogging and allowing the clean filtrate to pass through the continuous slots.
3.Self-Cleaning: The inward-expanding slot design prevents the trapping of debris, and the smooth surface allows for easy backwashing (or backflushing), which helps clear out any trapped particles, making maintenance easier.
Advantages of Wedge Wire Screen Nozzles
Non-Clogging: The V-shaped wire profile ensures that debris and particles do not accumulate within the slot, which is a common issue in traditional filtration systems.
High Efficiency: With its large open area and low-pressure drop, wedge wire nozzles allow for higher flow rates and efficient filtration, even in high-pressure environments.
Self-Cleaning: The nozzle’s design supports easy backwashing, making it easier to maintain over time and reducing the need for frequent replacement.
Versatility: These nozzles can be used for various applications, including water treatment, industrial filtration, and solid-liquid separation, making them suitable for a wide range of industries.
Typical Applications of Wedge Wire Screen Nozzles
Wedge wire screen nozzles are utilized in several industries due to their versatility and efficiency. Here are some common applications:

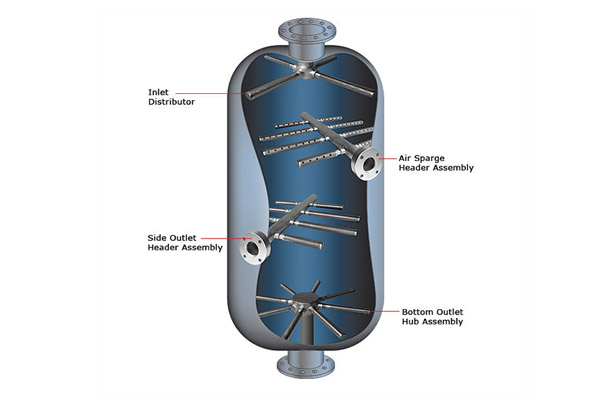

Water Treatment: In systems like gravity sand filters, water softeners, and ion exchange processes, wedge wire nozzles efficiently separate particles and impurities, ensuring clean water.
Industrial Filtration: In petrochemical, pharmaceutical, and food and beverage industries, wedge wire nozzles provide precise, continuous filtration, which is essential for consistent product quality.
Solid-Liquid Separation: In sectors such as mining or wastewater treatment, wedge wire nozzles assist in separating solid particles from liquids, aiding in the removal of debris and improving overall system performance.
Why Choose Wedge Wire Screen Nozzles?
If you’re looking for a filtration solution that offers durability, efficiency, and minimal maintenance, wedge wire screen nozzles are an excellent choice. Their ability to provide high flow rates, prevent clogging, and facilitate self-cleaning makes them an ideal option for various filtration and separation processes. Whether you're in water treatment or industrial filtration, these nozzles are designed to perform in the most demanding conditions.
Get a Free Quote for YUBO Wedge Wire Filter Nozzles
FAQ: Wedge Wire Screen Nozzle in Filtration Systems
Q1: What makes wedge wire screen nozzles more efficient than traditional filter nozzles?
Their continuous slot design provides a larger open area, which improves flow rate and reduces pressure loss compared to perforated or mesh-based nozzles.
Q2: How does slot size affect filtration performance?
Slot size determines the particle retention level. Smaller slots provide finer filtration, while larger slots allow higher flow rates. Selecting the right slot size ensures optimal balance between efficiency and throughput.
Q3: Can wedge wire screen nozzles be customized for different systems?
Yes. They can be customized in terms of slot width, diameter, length, connection type, and material to meet specific operational and environmental requirements.
Q4: Are wedge wire nozzles suitable for corrosive environments?
They perform well in corrosive conditions due to the use of stainless steel materials like 304 and 316L, which offer strong resistance to rust and chemical damage.
Q5: What factors should be considered when installing these nozzles?
Key considerations include flow direction, system pressure, media type, and proper spacing to ensure uniform distribution and long-term operational stability.
