Wedge wire flat panels are precision-engineered screening components designed for efficient filtration, dewatering, and solid-liquid separation. Known for their durability and consistent performance, they are widely applied in industries where reliability, flow efficiency, and low maintenance are critical.
What Are Wedge Wire Flat Panels?
Wedge wire flat panels are fabricated by welding V-shaped surface wires onto support rods using resistance welding technology. This construction creates continuous slot openings across the panel surface.
The defining characteristic is the inwardly widening slot geometry. This design ensures that particles either pass through the slot or are retained on the surface without becoming lodged inside, reducing clogging and improving operational stability.
Key Features
The V-shaped surface wires form slots that widen toward the inside. This geometry minimizes particle buildup and supports a natural self-cleaning effect, especially in continuous flow systems.
2. Continuous Slot Structure
Unlike perforated plates, wedge wire panels provide uninterrupted slot openings. This results in a high open area—typically ranging from 15% to 65%—which supports higher flow rates and efficient throughput.
3. Fully Welded Construction
Each intersection between the surface wire and support rod is welded, creating a rigid and stable structure. This ensures the panel can withstand mechanical stress, vibration, and abrasive materials.
4. Precision Slot Control
Manufacturing processes allow for tight tolerances in slot size. This ensures consistent filtration performance and reliable particle separation across the entire panel.
Benefits
Reduced Clogging and Maintenance
The inwardly widening slots prevent particles from becoming trapped. This significantly reduces blinding and lowers maintenance frequency, especially in applications with high solids content.
Improved Efficiency and Throughput
The high open area enhances flow capacity, which can improve system efficiency. In pumping systems, this may contribute to measurable energy savings and more stable operation.
Long Service Life
Wedge wire panels are typically made from corrosion-resistant materials such as stainless steel or duplex alloys. Combined with their robust construction, this allows for long operational lifespans, often exceeding several years even in demanding environments.
Adaptability Across Industries
Their structural strength and customizable design make them suitable for a wide range of uses—from fine filtration to heavy-duty screening.
Design Options
Wedge wire flat panels can be tailored to meet specific operational and environmental requirements. Key customization parameters include:
Material Selection
Stainless Steel: 304, 304L, 316, 316L
Duplex Stainless Steel: 2205
Specialized Alloys: Hastelloy, Monel
Material choice depends on factors such as corrosion resistance, temperature, and chemical exposure.
Slot Size
Slot openings can be precisely engineered to match filtration requirements, ranging from fine micron-level separations to larger screening applications.
Surface Wire Profiles
Different wire shapes can be used depending on performance needs:
Standard V-wire for general filtration
Inverted profiles for specific flow conditions
Custom profiles for enhanced load-bearing or wear resistance
Support Rod Configuration
Support rods can be designed in various shapes—round, square, or triangular—to provide the required strength and spacing for the panel.
Surface Finish
Panels can be finished for either functional or aesthetic purposes. In architectural applications, finishes may be selected for visual appeal, reflectivity, or integration into design elements.
Common Applications
Water Treatment
Used in filtration, screening, and distribution systems to ensure efficient removal of suspended solids.

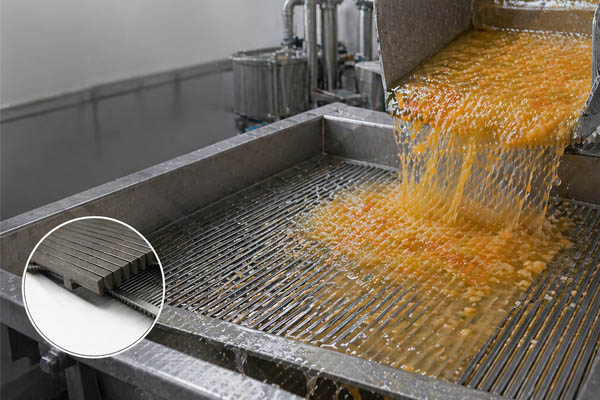

Food Processing
Applied in processes such as washing, sorting, and dewatering, where hygiene and precision are essential.
Industrial Processing
Widely used in chemical, petrochemical, and mining industries for separation and screening tasks.
Architectural and Structural Uses
In addition to industrial functions, wedge wire panels are increasingly used in architectural designs for walkways, facades, and drainage systems, where both strength and appearance matter.
Selection Considerations
Choosing the right wedge wire flat panel involves evaluating several factors:
Required slot size and filtration accuracy
Flow rate and pressure conditions
Type of media (liquid, slurry, or solids)
Corrosion and temperature environment
Load-bearing requirements
A well-matched design improves performance, reduces downtime, and extends equipment life.
FAQ: Practical Questions Buyers Often Ask
1. Are wedge wire panels suitable for high-temperature environments?
Yes, but material selection is critical. Stainless steel and high-performance alloys like Hastelloy are often used in elevated temperature conditions. Always verify temperature limits for your chosen material.
2. Can wedge wire panels handle abrasive materials like sand or minerals?
They perform well in abrasive environments due to their welded structure and wear-resistant materials. For heavy abrasion, thicker wire profiles or specialized alloys can extend service life.
3. How are wedge wire panels installed or supported?
Installation depends on the system design. Panels can be framed, bolted, or welded into position. Proper support spacing is important to prevent deflection under load.
4. What maintenance is typically required?
Maintenance is generally minimal. Periodic cleaning—such as backwashing or mechanical brushing—may be used depending on the application, but the self-cleaning slot design reduces the need for frequent intervention.
5. Can panels be customized for non-standard shapes or sizes?
Yes. Wedge wire panels can be manufactured in various shapes, including rectangular, circular, or curved forms, to fit specific equipment or architectural requirements.
6. How do wedge wire panels compare to perforated plates in long-term use?
While perforated plates may have a lower initial cost, wedge wire panels typically offer better flow performance, reduced clogging, and longer service life, leading to lower total cost over time.
