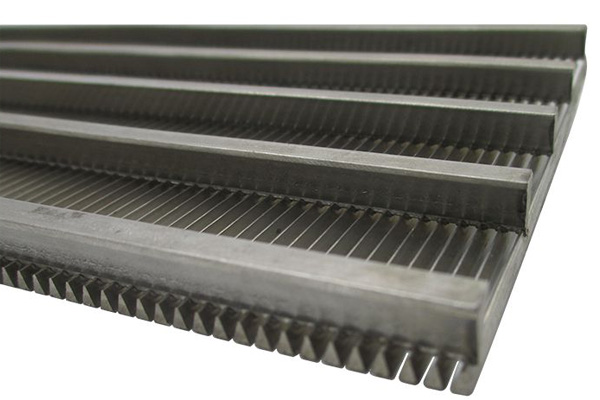

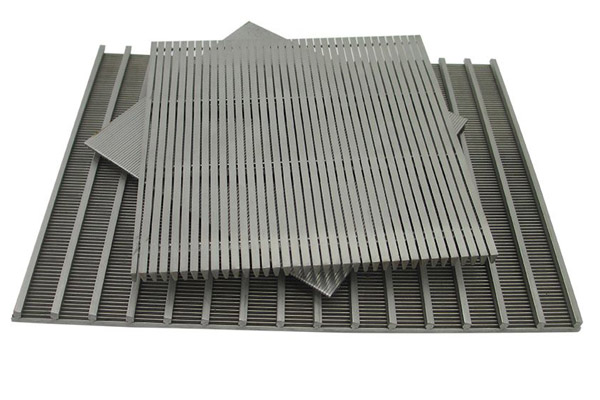

Wedge wire screen plates, also known as V-wire or Johnson screens, are widely used in water treatment, mining, food processing, and industrial filtration systems. Their precise slot openings, strong structure, and anti-clogging performance make them a popular choice for demanding applications.
But how much does a wedge wire screen plate cost?
In most cases, standard wedge wire screen plates range from $100 to over $300 USD, depending on material, slot size, and customization requirements.
Main Factors That Affect Wedge Wire Screen Plate Price
1. Material Grade
Material is the biggest cost factor.
Common materials include:
SS304 stainless steel
SS316 / SS316L stainless steel
Duplex 2205
Hastelloy
SS304 is the most economical option, while corrosion-resistant alloys like Duplex and Hastelloy cost significantly more.
2. Slot Size
Smaller slot openings require higher manufacturing precision.
For example, a 0.25 mm slot is more expensive to produce than a 1.0 mm slot because it requires tighter welding tolerances and slower production speeds.
3. Wire and Rod Dimensions
Thicker profile wires and support rods improve strength and durability, but they also increase material usage and production cost.
Heavy-duty industrial applications often require stronger structures.
4. Customization
Custom wedge wire screen plates usually cost more than standard panels.
Price increases may come from:
Custom dimensions
Special shapes
Reinforced frames
Surface polishing
Unique connection designs
5. Order Quantity
Large-volume orders are generally more cost-effective because production setup costs are distributed across more units.
Small custom orders typically have a higher per-unit price.
Wedge Wire vs. Perforated Plate
| Feature |
Wedge Wire Screen |
Perforated Plate |
| Initial Cost |
Higher |
Lower |
| Clogging Resistance |
Excellent |
Moderate |
| Filtration Precision |
High |
Lower |
| Service Life |
Long |
Medium |
Although wedge wire screens have a higher initial cost, they often provide lower maintenance costs and longer service life.
The price of a wedge wire screen plate depends mainly on material grade, slot size, structural design, customization, and order quantity.
For applications requiring reliable filtration, high strength, and long-term durability, wedge wire screens remain a cost-effective solution despite the higher upfront investment.
FAQ
What is the cheapest material for wedge wire screen plates?
SS304 stainless steel is usually the most economical option for general industrial applications.
Why are small slot wedge wire screens more expensive?
Smaller slots require higher precision manufacturing and more production time.
Are custom wedge wire panels available?
Yes. Manufacturers can customize dimensions, slot sizes, shapes, and frame structures based on project requirements.
Do wedge wire screens last longer than perforated plates?
In many filtration applications, wedge wire screens offer better durability, reduced clogging, and longer service life.
