In modern food processing, filtration systems play a critical role in maintaining product quality, production efficiency, and hygiene standards. From breweries and juice plants to sugar refineries and dairy facilities, manufacturers require filtration equipment that delivers consistent performance while meeting strict sanitary requirements.
Among the most reliable industrial filtration solutions, wedge wire screen plates have become widely used because of their precision slot openings, self-cleaning structure, and long service life. Their ability to provide continuous flow with reduced clogging makes them especially suitable for demanding food-grade applications.
What Are Wedge Wire Screen Plates?

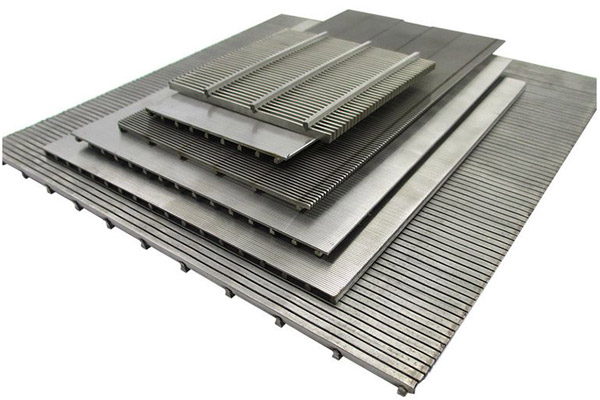

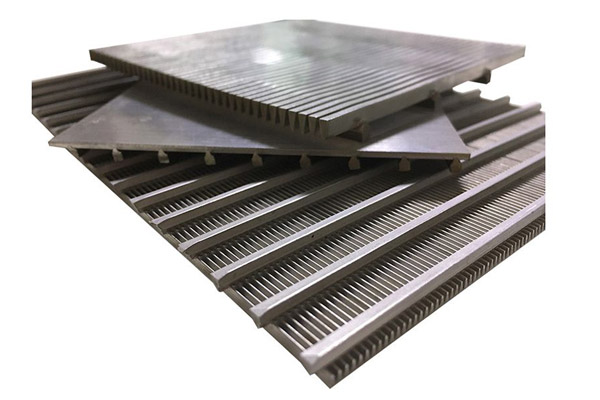

Wedge wire screen plates are filtration components manufactured by welding V-shaped profile wires onto support rods. This structure creates continuous slot openings with high dimensional accuracy and mechanical strength.
Unlike conventional perforated plates or woven wire mesh, wedge wire screens feature a smooth filtration surface and inward-widening slots. This design minimizes blockage and improves flow efficiency during filtration processes.
The screens are commonly fabricated from food-grade stainless steel materials such as:
SS 304
SS 316
SS 316L
These stainless steel grades provide excellent corrosion resistance, durability, and compliance with food industry sanitation standards.
How Wedge Wire Screen Plates Work
The filtration principle of wedge wire screens is simple but highly effective.

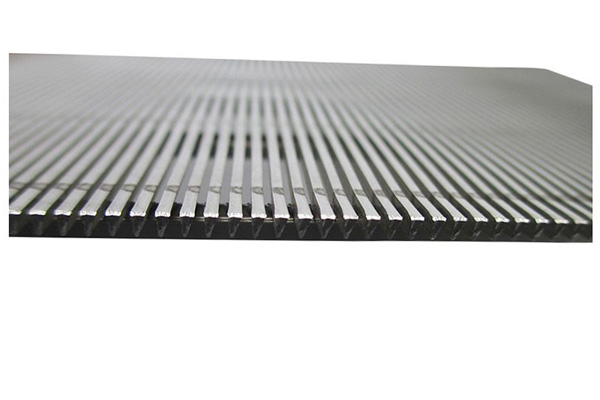

The V-shaped wire profile creates a narrow opening on the surface and a wider gap underneath. As liquid passes through the screen:
1. Solid particles are retained on the surface.
2. Smaller particles and fluids pass through the slots.
3. The widening slot design reduces particle accumulation and clogging.
This structure allows continuous filtration with stable flow rates, even in applications containing pulp, grains, fibers, or sticky residues.
Because the filtration surface remains cleaner for longer periods, production downtime and maintenance frequency can be significantly reduced.
Key Specifications for Food Processing Applications
Food processing environments require filtration equipment that combines precision, hygiene, and durability. Wedge wire screen plates can be customized according to different production requirements.
Material Options
The most common food-grade materials include:
Material Features Typical Applications
SS 304 Good corrosion resistance and cost efficiency General food processing
SS 316 Improved resistance to chemicals and chlorides Beverage and dairy systems
SS 316L Low carbon content for enhanced corrosion resistance High-sanitation applications
Slot Sizes
Slot openings can be manufactured with high precision, typically ranging from:
0.10 mm for fine filtration
Up to 3.00 mm for coarse separation
The correct slot size depends on the product viscosity, particle size, and required filtration accuracy.
Open Area
The open area directly affects flow capacity and filtration efficiency.
Fine filtration screens generally provide 8–18% open area
Coarser filtration designs may achieve up to 65% open area
Higher open area improves throughput while maintaining structural integrity.
Common Food Processing Applications
Brewing Industry
In breweries, wedge wire screen plates are widely used in lauter tuns for separating liquid wort from spent grains.
The continuous slot structure allows efficient drainage while minimizing grain blockage. This helps improve wort clarity and process consistency.
Juice Production
Fruit and vegetable juice processing often involves removing seeds, pulp, fibers, and peel residues.
Wedge wire screens support continuous filtration without excessive clogging, making them suitable for high-volume juice production lines.
Sugar Refining
Sugar processing systems require durable filtration components capable of handling hot syrups and crystal separation.
Stainless steel wedge wire plates provide excellent resistance to abrasion and corrosion under these demanding operating conditions.
Dairy Processing
In dairy applications, wedge wire screens are commonly used for:
Whey separation
Milk clarification
Cheese draining systems
The hygienic surface design supports sanitary cleaning procedures and helps maintain product purity.
Grain Processing
Food grain handling systems use wedge wire screen plates for:
Screening impurities
Drying systems
Ventilation equipment
Product classification
Their strong welded structure withstands continuous industrial operation and vibration.
Advantages of Wedge Wire Screen Plates in Food Filtration
Hygienic and Sanitary Design
Food-grade wedge wire screens are designed with smooth surfaces and precision welding. This reduces dead zones where bacteria or residues may accumulate.
The screens are compatible with CIP (Clean-In-Place) cleaning systems commonly used in food and beverage plants.
Non-Clogging Performance
The inward-widening slot design helps prevent particles from becoming trapped inside the openings.
Compared with traditional mesh filters, wedge wire screens maintain more stable flow rates over extended operating periods.
High Mechanical Strength
Fusion-welded construction gives wedge wire plates excellent structural durability.
They resist deformation during:
High-pressure cleaning
Continuous operation
Mechanical vibration
Heavy product loads
Long Service Life
Stainless steel wedge wire screens offer strong resistance to:
Corrosion
Abrasion
Temperature fluctuations
Chemical cleaning agents
This reduces replacement frequency and lowers long-term maintenance costs.
Flexible Customization
Wedge wire screen plates can be customized in terms of:
Slot opening
Plate thickness
Shape and dimensions
Reinforcement structure
Surface finish
This flexibility allows manufacturers to optimize filtration performance for specific production systems.
Choosing the Right Wedge Wire Screen Plate
Selecting the correct screen plate depends on several operational factors.
Product Characteristics
Consider:
Particle size
Product viscosity
Flow rate
Solid concentration
These factors determine the required slot opening and screen structure.
Cleaning Requirements
Food processing systems often require frequent cleaning and sterilization. Choosing corrosion-resistant materials like SS 316L can improve long-term performance.
Operating Environment
Temperature, pressure, and chemical exposure should all be evaluated before selecting a screen material and reinforcement design.
Filtration Accuracy
Fine filtration applications require tighter slot tolerances, while coarse separation systems may prioritize higher open area and flow capacity.
Why Food Manufacturers Choose Wedge Wire Technology
Food processing companies increasingly prefer wedge wire filtration systems because they combine operational efficiency with hygienic reliability.
Compared with traditional perforated sheets or woven mesh filters, wedge wire screen plates provide:
More precise filtration
Lower clogging risk
Easier cleaning
Higher durability
Better flow consistency
These advantages support stable production quality while reducing downtime and maintenance costs.
As food safety regulations continue to become stricter worldwide, high-performance stainless steel filtration systems are becoming essential components in modern processing facilities.
FAQ: Wedge Wire Screen Plates for Food Processing
What is the ideal stainless steel grade for food processing filtration?
SS 304 is commonly used for general food applications, while SS 316 and SS 316L are preferred in environments involving chemicals, salt exposure, or strict sanitary requirements.
Are wedge wire screen plates suitable for CIP cleaning systems?
Yes. Their smooth welded surfaces and open slot structure make them highly compatible with Clean-In-Place (CIP) cleaning processes used in food and beverage facilities.
How do wedge wire screens reduce clogging?
The V-shaped wire profile creates slots that widen inwardly. This design prevents particles from becoming trapped inside the openings, improving self-cleaning performance.
Can wedge wire screen plates be customized?
Yes. Manufacturers can customize slot size, dimensions, reinforcement structure, material grade, and screen shape based on specific processing requirements.
What industries commonly use wedge wire screen plates?
They are widely used in brewing, dairy processing, juice production, sugar refining, grain handling, starch processing, and wastewater treatment systems within food plants.
How long do stainless steel wedge wire screens typically last?
Service life depends on operating conditions, cleaning frequency, and material selection. Under proper maintenance, stainless steel wedge wire screens can provide many years of stable operation.
What slot size is best for food filtration?
There is no universal slot size. Fine filtration may require openings as small as 0.10 mm, while coarse filtration systems may use larger openings up to 3.00 mm or more.
Are wedge wire screen plates better than woven wire mesh?
In many industrial food applications, yes. Wedge wire screens generally offer higher strength, improved clog resistance, easier cleaning, and longer operational life compared with woven mesh filters.
