In modern industrial processing systems, reactor and vessel internals play a critical role in maintaining stable operation, protecting valuable media, and ensuring efficient flow distribution. Among these internals, wedge wire support plates have become a preferred solution for catalyst support, media retention, and liquid or gas distribution in demanding process environments.
Because of their high mechanical strength, non-clogging structure, and excellent open area, wedge wire support plates are widely used in petrochemical plants, water treatment facilities, refining systems, gas processing units, and chemical reactors.
What Are Wedge Wire Support Plates?

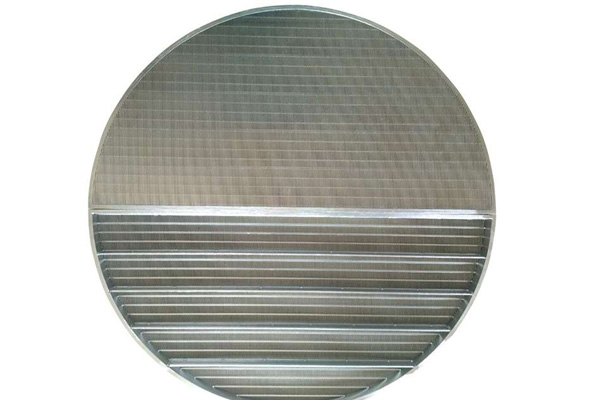

Wedge wire support plates, also known as support grids or support screens, are engineered metal structures manufactured from V-shaped profile wires welded to support rods. The welded construction forms continuous slot openings that allow fluid or gas to pass while retaining catalyst particles or filtration media inside the vessel.
Unlike perforated plates or woven mesh screens, wedge wire structures provide a precise slot opening and a smooth flow path that reduces blockage and pressure loss.
In reactor systems, these support plates are commonly installed at the bottom of catalyst beds or media chambers to support heavy static loads while maintaining process efficiency.
How Wedge Wire Technology Improves Reactor Performance
The performance of a reactor or pressure vessel often depends on how evenly fluids or gases move through the media bed. Uneven flow can create channeling, dead zones, pressure instability, or catalyst damage.
Wedge wire support plates help solve these challenges through several design advantages.
Non-Clogging V-Wire Structure
The V-shaped wire profile creates openings that widen inward. This design minimizes particle buildup and reduces the risk of plugging compared with straight-slot or perforated alternatives.
Because only two contact points exist between particles and the wire surface, solids are less likely to become trapped inside the slot opening. This is especially important in high-temperature and high-pressure reactor environments.
High Open Area and Low Pressure Drop
One of the major advantages of wedge wire support grids is their high open area percentage.
Higher open area allows:
Better flow distribution
Lower energy consumption
Reduced pressure drop
Improved reactor efficiency
More stable process operation
For industries handling large flow volumes, maintaining low pressure loss can significantly reduce operational costs over time.
Excellent Mechanical Strength
Catalyst beds and process media can create extremely heavy loads inside a vessel. In many applications, support plates must withstand both:
Static loads from catalyst weight
Dynamic loads caused by pressure fluctuations and fluid movement
Wedge wire support plates are commonly reinforced with structural beams, support rings, or flat bars to ensure long-term mechanical stability under severe operating conditions.
Common Materials Used
Material selection depends on operating temperature, corrosion conditions, and process chemistry.
Common materials include:
Stainless Steel 304
Stainless Steel 316L
Duplex Stainless Steel
Hastelloy alloys
Other corrosion-resistant specialty alloys
These materials provide excellent resistance to corrosion, abrasion, and thermal stress, making them suitable for long service life in aggressive industrial environments.
Applications of Wedge Wire Support Plates
Catalyst Support Systems
In hydroprocessing and catalytic reactors, support plates hold catalyst media securely while maintaining uniform gas or liquid distribution through the catalyst bed.
Stable support helps prevent catalyst movement, uneven flow patterns, and operational inefficiencies.
Distributor and Collector Systems
Wedge wire grids are frequently used as distributor plates or collector systems inside process vessels.
Their precise slot openings help distribute fluids evenly across the reactor cross-section, improving reaction consistency and system performance.
Ion Exchange and Carbon Towers
In water treatment and purification systems, wedge wire support plates retain resin beads or activated carbon media while allowing efficient fluid collection.
Their non-clogging design helps reduce maintenance frequency and extends operational uptime.
Vessel Protection and Reactor Liners
Some support grids are integrated into vessel internals to protect reactor walls from abrasion, erosion, or catalyst impact.
This additional protection can help extend vessel service life and reduce maintenance costs.
Custom Design Options
Every processing system operates under unique flow rates, media sizes, temperatures, and pressure conditions. Because of this, wedge wire support plates are typically custom engineered.
Slot Opening Sizes
Slot openings are se lected according to the media particle size and process requirements.
Typical slot ranges include:
0.002 inches for fine media retention
Up to 1 inch for larger process applications
Precise slot sizing is essential for preventing media loss while maintaining optimal flow performance.

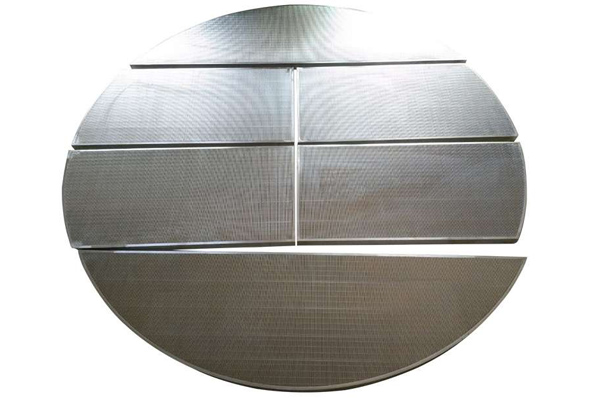

Segmented Construction for Easy Installation
Large reactor vessels often have limited access through manways. To simplify transportation and installation, support plates are commonly manufactured in segmented sections.
These sections are assembled inside the vessel during installation, reducing downtime and improving maintenance accessibility.
Multiple Structural Configurations
Wedge wire support systems can be manufactured in several configurations, including:
Flat support screens
Conical support bottoms
Dome-shaped support grids
Beam-reinforced structures
Ring-supported assemblies
The final configuration depends on vessel geometry, flow direction, and load requirements.
Why Industries Prefer Wedge Wire Support Plates
Compared with conventional perforated plates or wire mesh systems, wedge wire support plates offer several long-term operational benefits:
Longer service life
Reduced maintenance requirements
Better flow efficiency
Improved resistance to clogging
Higher mechanical strength
More accurate slot control
Better adaptability for custom vessel designs
FAQ About Wedge Wire Support Plates
What is the difference between a wedge wire support plate and a perforated plate?
A wedge wire support plate uses welded V-shaped wires to create precise continuous slots, while a perforated plate relies on punched holes. Wedge wire designs typically provide better flow performance, lower pressure drop, and improved resistance to clogging.
How do I choose the correct slot size for a support grid?
The slot size should be se lected based on the particle size of the catalyst or media being retained. Proper slot sizing prevents media loss while maintaining sufficient flow capacity and minimizing pressure drop.
Can wedge wire support plates handle high temperatures and pressure?
Yes. Wedge wire support plates are designed for demanding industrial environments and can operate under high temperature and high-pressure conditions when manufactured using suitable alloys and structural reinforcements.
Are wedge wire support plates customizable for different vessels?
Yes. Most support plates are custom engineered according to vessel dimensions, load requirements, flow direction, media characteristics, and installation limitations.
What industries commonly use wedge wire support grids?
Common industries include:
Petrochemical processing
Oil and gas refining
Water treatment
Chemical processing
Gas separation
Power generation
Mining and mineral processing
How long do wedge wire support plates typically last?
Service life depends on operating conditions, material selection, and maintenance practices. In properly designed systems, stainless steel wedge wire support plates can provide many years of reliable operation with minimal maintenance.
