Solid-liquid separation is a critical process in industries such as mining, wastewater treatment, food processing, pulp and paper, and chemical manufacturing. Efficient separation systems help improve production performance, reduce operational costs, and minimize downtime caused by clogging or equipment failure.
Among the various screening technologies available today, wedge wire panels have become a widely used solution because of their high strength, excellent flow capacity, and non-clogging performance.
Their engineered V-shaped profile design allows continuous and reliable separation even in demanding industrial environments with abrasive solids and high flow volumes.
What Are Wedge Wire Panels?

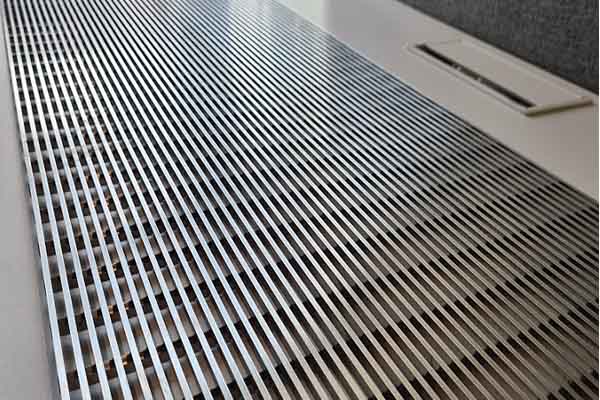

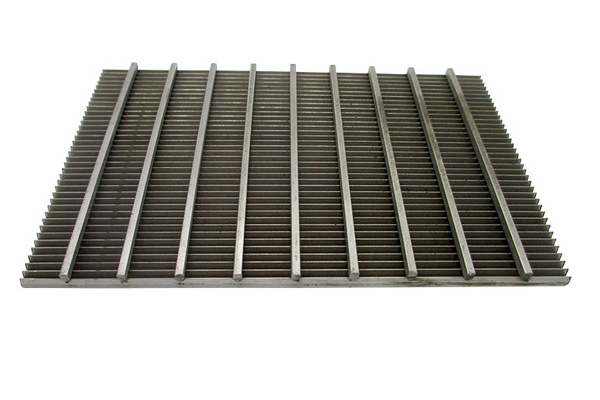

Wedge wire panels are filtration and screening components manufactured by welding V-shaped profile wires onto support rods to create continuous slot openings.
Unlike perforated plates or woven wire mesh, wedge wire panels provide precise slot control and a smooth screening surface that supports efficient liquid flow while retaining solids.
The panels are commonly manufactured from stainless steel materials such as SS304 or SS316L, offering strong corrosion resistance and long service life in harsh industrial environments.
Depending on the application, wedge wire panels can be used as:
Flat screening panels
Vibrating screen decks
Dewatering screens
Drum screens
Static sieve screens
Filter support panels
Non-Clogging V-Shaped Design
One of the most important advantages of wedge wire panels is their self-cleaning slot structure.
The V-shaped profile wire forms a slot that is narrower at the surface and gradually widens internally. This inward-expanding design allows particles to pass through the opening without becoming trapped inside the screen.
Traditional perforated screens and woven mesh systems are more likely to suffer from blinding or clogging, especially when processing sticky or fine solids. Wedge wire panels significantly reduce this problem, allowing operations to continue with fewer interruptions.
The reduced risk of blockage improves production stability and decreases the need for frequent manual cleaning.
High Open Area for Improved Flow Rates
Wedge wire panels are designed with a high percentage of open area compared with conventional screening materials.
Higher open area provides several operational advantages:
Increased flow capacity
Faster liquid drainage
Improved dewatering efficiency
Higher processing throughput
Lower pressure resistance
Because fluids move more freely through the continuous slot openings, the separation process becomes more efficient while energy consumption can also be reduced.
This is especially important in high-volume industrial systems where maintaining flow efficiency directly affects productivity.
Strong Construction for Heavy Industrial Use
Industrial separation systems often operate under severe conditions involving abrasive materials, heavy solids loading, vibration, and pressure fluctuations.
Wedge wire panels are manufactured using a welded construction that provides excellent mechanical strength and dimensional stability. The rigid structure helps maintain accurate slot openings even during continuous operation under heavy loads.
Compared with traditional wire mesh screens that may stretch or deform over time, wedge wire panels offer longer operational life and more consistent separation performance.
Reduced Maintenance and Downtime
Maintenance downtime can significantly affect production efficiency and operating costs.
Because wedge wire panels resist clogging and wear, they generally require less frequent cleaning and replacement. In many applications, the panels can operate for extended periods without shutdown.
Lower maintenance requirements provide several benefits:
Reduced labor costs
Less production interruption
Lower replacement frequency
Improved equipment reliability
Higher long-term operational efficiency
For facilities running continuous production systems, reducing downtime is often one of the most valuable advantages of wedge wire technology.
Precision Separation Performance
Accurate separation is essential for maintaining product quality and process consistency.
Wedge wire panels provide continuous slot openings with highly precise tolerances. Slot sizes can be customized from as small as 0.02 mm up to 20 mm depending on the application requirements.
This precise slot control allows industries to achieve reliable solid-liquid separation while minimizing product loss and improving filtration accuracy.
Different slot configurations can also be designed to match varying particle sizes, flow conditions, and processing requirements.
Corrosion Resistance in Harsh Environments
Many industrial processes involve corrosive chemicals, high moisture exposure, or elevated operating temperatures.
To ensure long-term durability, wedge wire panels are commonly manufactured from corrosion-resistant stainless steel materials such as:
Stainless Steel 304
Stainless Steel 316L
Duplex Stainless Steel
Specialty alloy materials
These materials provide excellent resistance to corrosion, abrasion, and thermal stress, making wedge wire panels suitable for aggressive industrial environments.
Common Applications of Wedge Wire Panels
Wedge wire panels are widely used in industries requiring efficient separation and reliable filtration performance.
Typical applications include:
Mining and Mineral Processing
Used for dewatering, sizing, slurry separation, and tailings management.
Wastewater Treatment
Applied in screening systems, sludge dewatering, and solid removal processes.
Food and Beverage Processing
Used for liquid-solid separation in starch processing, sugar production, breweries, and food filtration systems.
Pulp and Paper Industry
Helps remove fibers and impurities during pulp screening and water recovery processes.
Chemical and Industrial Processing
Supports filtration, separation, and media retention in demanding process environments.
Why Industries Choose Wedge Wire Panels
Industries increasingly prefer wedge wire panels because they combine multiple operational advantages in one durable screening solution.
Key benefits include:
Non-clogging operation
High flow efficiency
Long service life
Precise slot control
Strong mechanical performance
Reduced maintenance costs
Excellent corrosion resistance
Improved production efficiency
These characteristics make wedge wire panels a reliable solution for continuous industrial separation systems.
FAQ About Wedge Wire Panels
How do wedge wire panels compare with polyurethane screens?
Wedge wire panels typically offer higher temperature resistance, better corrosion resistance, and more precise slot openings. Polyurethane screens may provide better impact absorption in some mining applications, but wedge wire panels generally deliver longer service life in corrosive environments.
Can wedge wire panels handle abrasive materials?
Yes. Wedge wire panels are designed for demanding industrial conditions and are widely used in mining and mineral processing applications involving abrasive solids and heavy wear.
What slot size should I choose for my application?
The correct slot size depends on particle size, flow rate, and separation requirements. A properly se lected slot opening helps maximize efficiency while preventing material loss.
Are wedge wire panels suitable for high-temperature environments?
Yes. Stainless steel wedge wire panels can operate under elevated temperatures and harsh chemical conditions when the appropriate material grade is s elected.
Can wedge wire panels be custom manufactured?
Yes. Wedge wire panels are fully customizable in terms of slot size, panel dimensions, support structure, wire profile, and material selection to meet specific industrial requirements.
How often do wedge wire panels require replacement?
Replacement frequency depends on operating conditions, material type, and process intensity. In many industrial applications, wedge wire panels provide significantly longer service life than traditional mesh or perforated screens.
