In fixed-bed reactors, adsorption vessels, and catalytic processing equipment, the catalyst bed support grid plays a critical role in maintaining stable operation. Although often installed beneath the catalyst layer, the support grid directly affects catalyst retention, fluid distribution, pressure drop, and overall reactor efficiency.

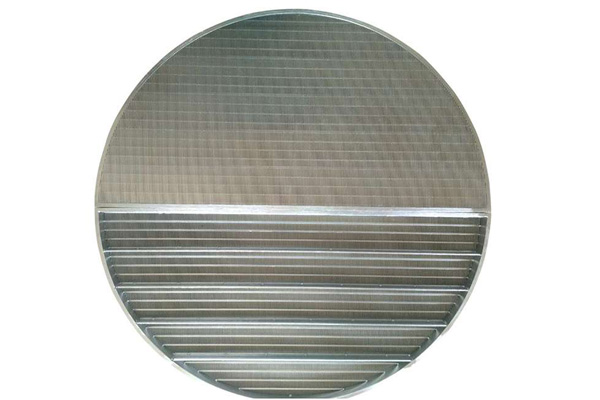

An improperly designed support grid can cause excessive pressure loss, uneven flow distribution, catalyst movement, and premature performance decline. In contrast, an optimized catalyst support grid provides strong mechanical support while maintaining efficient fluid flow.A catalyst bed support grid is a structural component installed inside reactors, regenerators, and adsorption vessels to support catalyst particles while allowing process fluids to pass through.
Its main functions include:
Supporting the weight of catalyst materials
Preventing catalyst migration
Maintaining uniform fluid flow
Minimizing pressure loss
Improving reactor reliability
Typical structures include:
Wedge wire support grids
Perforated support plates
Bar grids
Multi-layer support screens
Among these options, wedge wire support grids are widely used in demanding applications because they combine high mechanical strength with excellent hydraulic performance.
Pressure drop is one of the most important performance indicators in reactor design.
A support grid that restricts flow creates additional resistance, increasing:
Pumping or compression energy requirements
Operating costs
Equipment load
Risk of unstable operation
The pressure drop across a catalyst support grid is mainly affected by:
Open area ratio
Slot geometry
Grid thickness
Flow velocity
Catalyst particle characteristics
A well-designed grid provides sufficient support strength while maintaining enough open area for efficient fluid passage.
Open area is a key design parameter for catalyst support grids.
A higher open area generally provides:
Lower pressure drop
Better fluid distribution
Reduced energy consumption
Improved mass transfer efficiency
However, excessive open area may weaken structural strength and reduce catalyst support capability.
Therefore, engineers must balance:
Hydraulic performance + Mechanical strength + Catalyst retention
Wedge wire support grids achieve this balance through continuous slot openings and optimized wire profiles.
Traditional perforated plates often create higher flow resistance because fluid passes through individual holes with sharp edges.

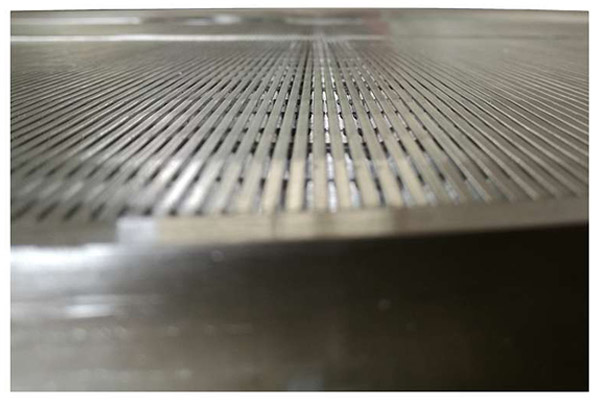

Wedge wire grids use V-shaped profile wires that create continuous openings.
Advantages include:
Smooth fluid transition
Reduced turbulence
Lower pressure loss
Better particle retention
Improved cleaning performance
The inward-widening slot design also reduces particle blockage, helping maintain stable flow during long-term operation.
A catalyst support grid must do more than carry weight—it must also maintain uniform fluid movement.
Poor grid design may lead to:
Uneven catalyst loading
Channeling
Localized high velocity
Reduced catalyst utilization
A properly designed support grid distributes process fluids evenly across the catalyst bed.
This improves:
Contact efficiency between fluid and catalyst
Reaction consistency
Overall reactor performance
Catalyst beds can create significant mechanical loads, especially in large industrial reactors.
Support grids must withstand:
Catalyst weight
Differential pressure
Thermal expansion
Mechanical vibration
Long-term operating stress
Important design factors include:
Wire profile dimensions
Support rod spacing
Welding quality
Reinforcement structure
Material selection
Resistance-welded wedge wire grids provide high structural stability and maintain precise slot geometry under demanding conditions.
The operating environment determines the appropriate support grid material.
Common options include:
| Material | Typical Applications |
|---|---|
| SS304 | General reactor applications |
| SS316L | Chemical and corrosive environments |
| Duplex Stainless Steel | High chloride conditions |
| Nickel Alloys | Severe chemical environments |
Material selection should consider:
Operating temperature
Process fluid chemistry
Corrosion risk
Mechanical loading requirements
Using the correct material helps prevent deformation, corrosion, and premature replacement.
To minimize pressure loss while maintaining reliable support performance, engineers should consider:
Ensure sufficient flow passage without compromising structural strength.
Slot dimensions should match catalyst particle size and retention requirements.
Smooth slot geometry helps minimize turbulence and energy loss.
A balanced grid design prevents localized pressure variations.
Design calculations should include:
Fluid velocity
Temperature
Pressure
Catalyst characteristics
Catalyst support grids are widely used in:
Hydroprocessing reactors
Hydrogenation reactors
Adsorption vessels
Petrochemical processing units
Chemical reactors
Gas purification systems
Refinery equipment
They are especially important where catalyst efficiency and pressure stability directly affect production performance.
The support grid maintains catalyst stability while controlling fluid flow distribution and pressure drop inside the reactor.
Higher open area generally reduces flow resistance and pressure loss, but it must be balanced with mechanical strength requirements.
Wedge wire grids provide high open area, strong mechanical support, precise slot control, and better resistance to clogging.
SS304 and SS316L are common choices, while Duplex stainless steel and nickel alloys are used for more aggressive environments.
The design of a catalyst bed support grid has a direct impact on reactor efficiency, pressure drop, and long-term operating reliability. A well-engineered grid must achieve the right balance between mechanical strength, catalyst retention, and hydraulic performance.
By optimizing structure, open area, slot design, and material selection, engineers can reduce pressure loss, improve flow distribution, and extend catalyst service life.
For modern fixed-bed reactors and adsorption systems, the catalyst support grid is not simply a load-bearing component—it is a key element in achieving efficient and stable process operation.
